Pulsation Damper No.1 Removal/Installation

  1. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION (+)
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the table.

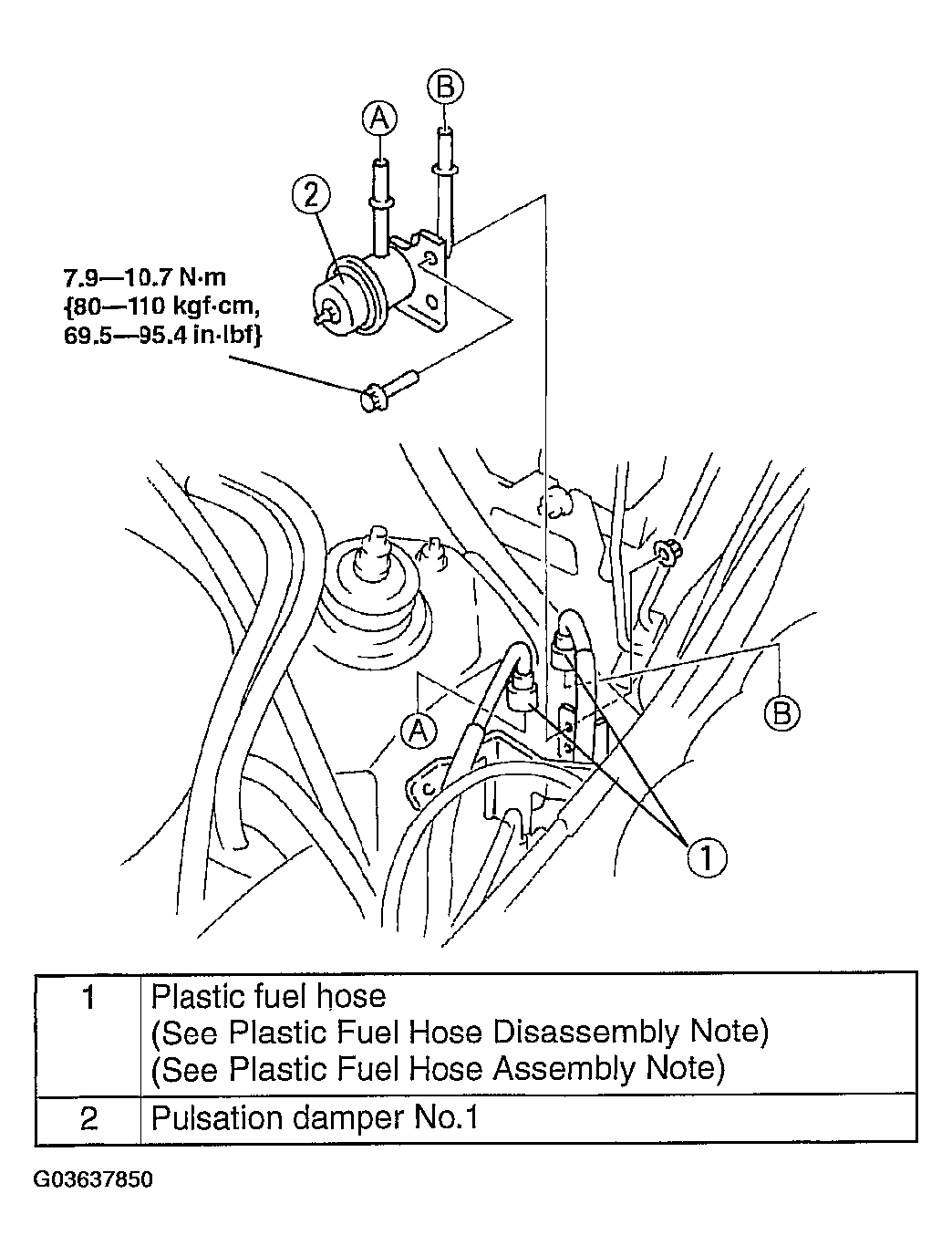

    Fig 1: Removing Pulsation Damper (BP, BP With TC) & Torque Specifications
    G03637850Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION (+)
