P Position Switch Inspection

Disconnect the negative battery cable.
Remove the rear console.
Remove the screws and lift up the indicator panel.
Disconnect the P position switch connector.

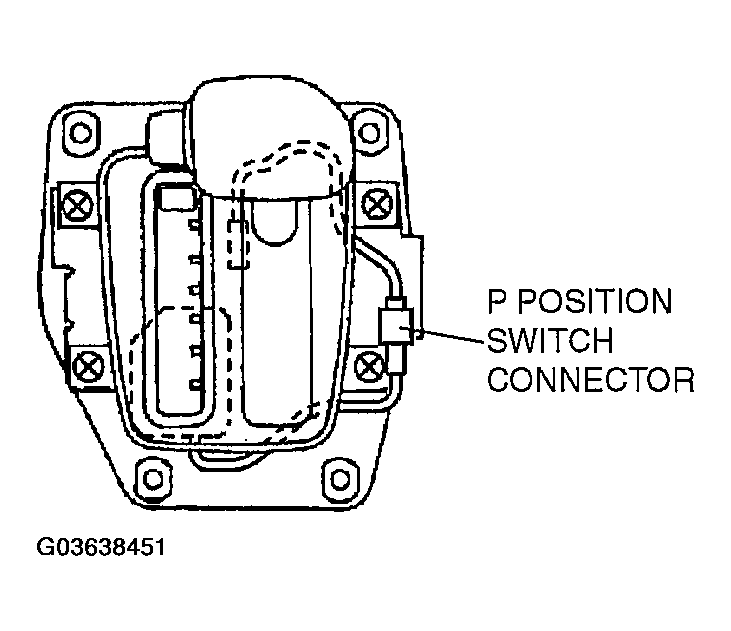

Fig 1: Identifying P Position Switch Connector
Courtesy of MAZDA MOTORS CORP.

Inspect for continuity between the terminals A and B.

If not as specified, replace the P position switch.

TERMINAL REFERENCE

Position/Range	selector lever release button	Continuity
P	Released:	Yes
P	Depressed	No
R, N, D, 2, 1	-	No

Connect the P position switch connector.

Fig 2: Identifying P Position Switch Part Side Connector
Courtesy of MAZDA MOTORS CORP.
Adjust the indicator panel. Install the screws in the order shown in the figure.
Tightening torque

1.5-2.4 N.m {16-24 kgf.cm, 14-21 in.lbf}

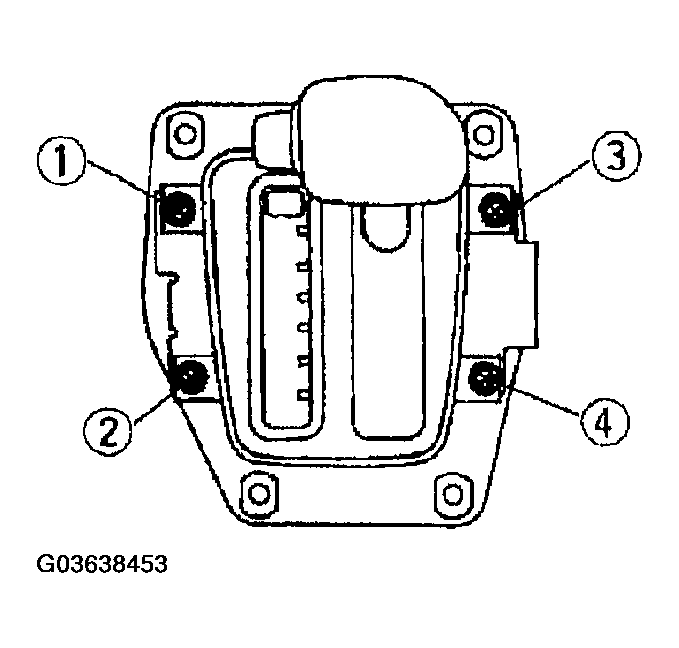

Fig 3: Installing Rear Console Screws
Courtesy of MAZDA MOTORS CORP.
Install the rear console.
Connect the negative battery cable.
