Key Interlock Solenoid Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Disconnect the key interlock solenoid connector.
  4. Remove the screws and the key interlock solenoid.

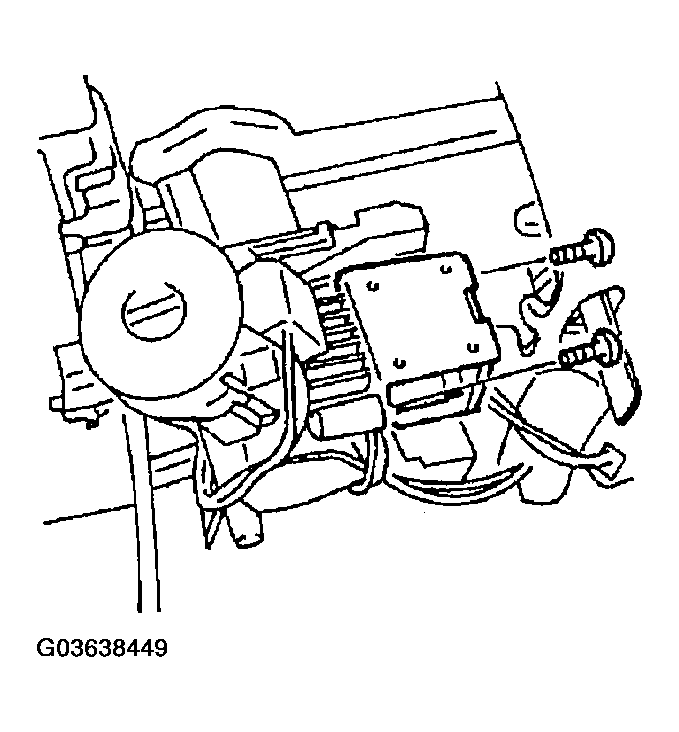

    Fig 1: Removing Key Interlock Solenoid
    G03638449Courtesy of MAZDA MOTORS CORP.
  5. Install the key interlock solenoid and tighten the screws.

    Tightening torque

    6.9-12.7 N.m {70-130 kgf.cm, 61-112 in.lbf}

  6. Verify that the key interlock solenoid operates.
  7. Connect the key interlock solenoid connector.
  8. Install the column cover.
  9. Connect the negative battery cable.
