MX-5 Miata Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting [Engine Control System BP, BP With TC)
>>
Symptom Quick Diagnostic Chart
Symptom Quick Diagnostic Chart

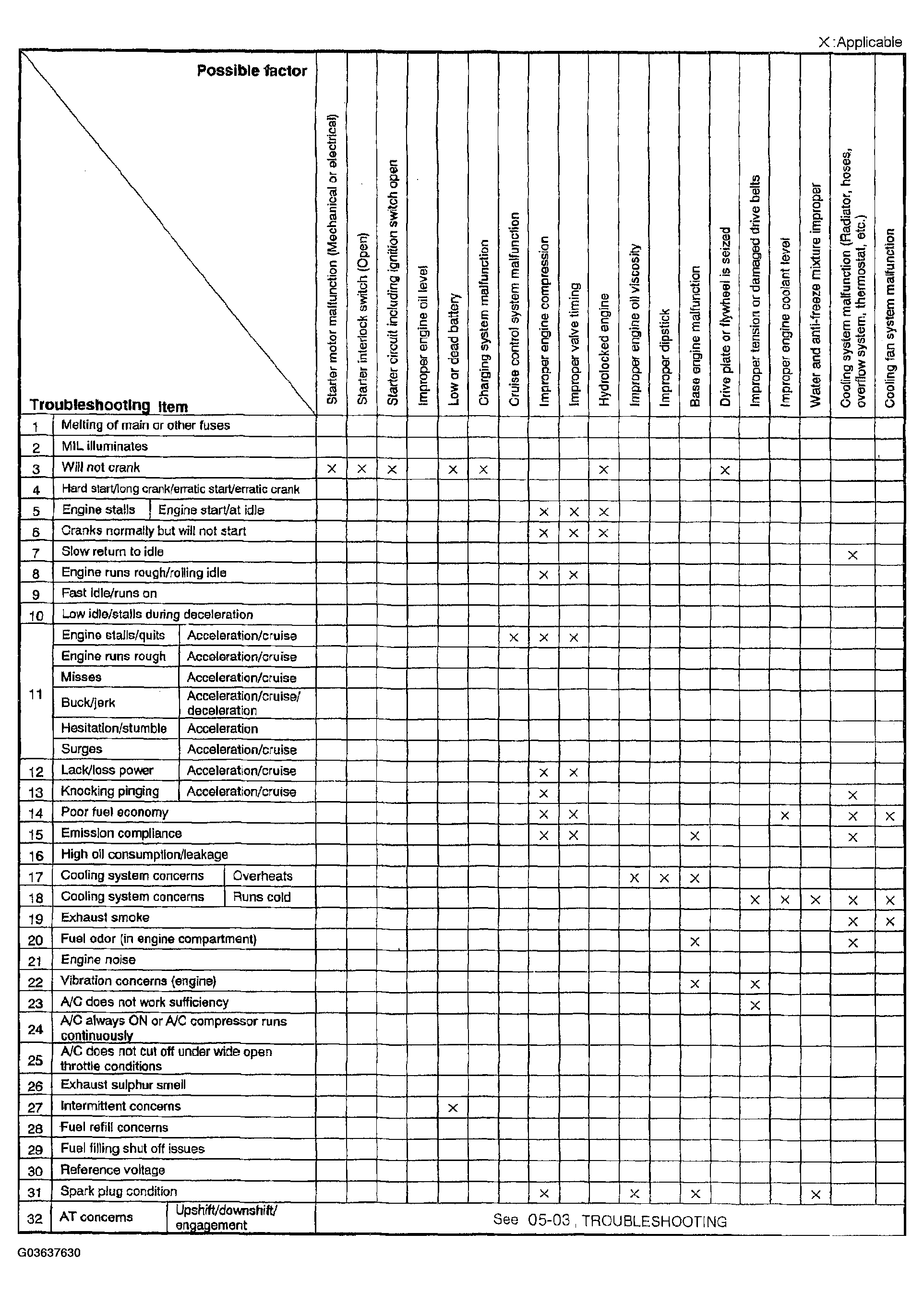

Fig 1: Quick Diagnostic Symptom Chart [BP, BP With TC] (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

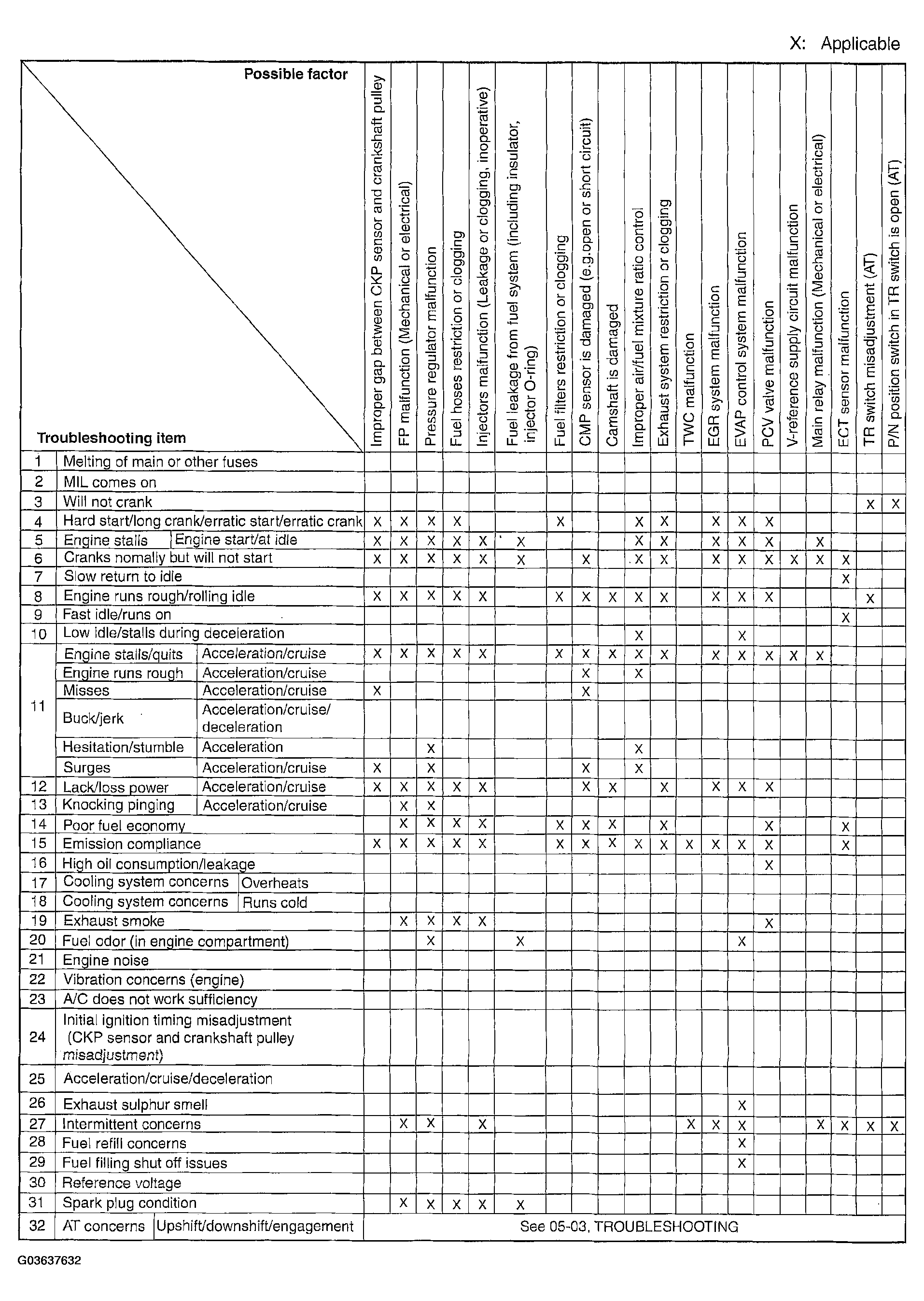

Fig 2: Quick Diagnostic Symptom Chart [BP, BP With TC] (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

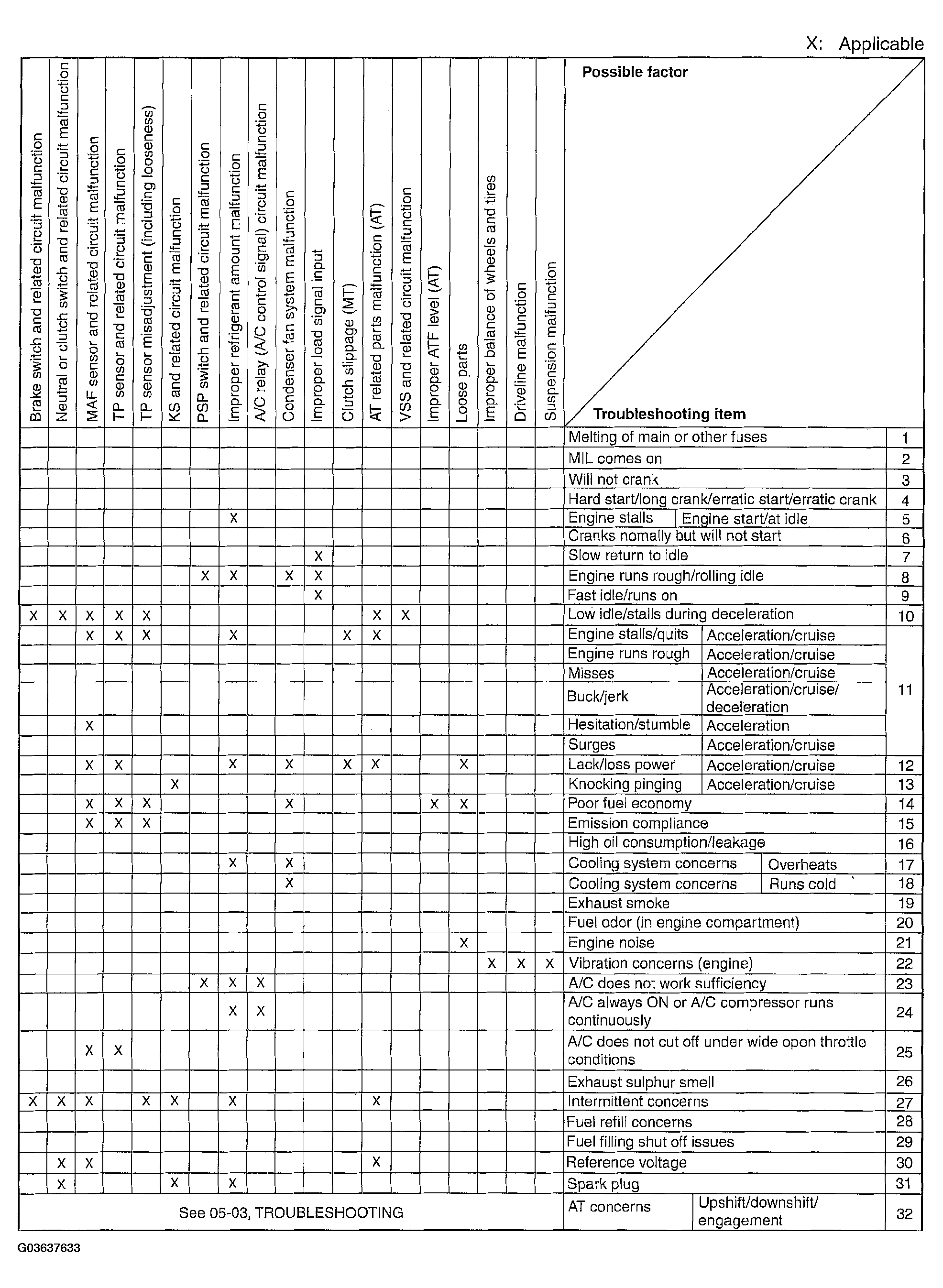

Fig 3: Quick Diagnostic Symptom Chart [BP, BP With TC] (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

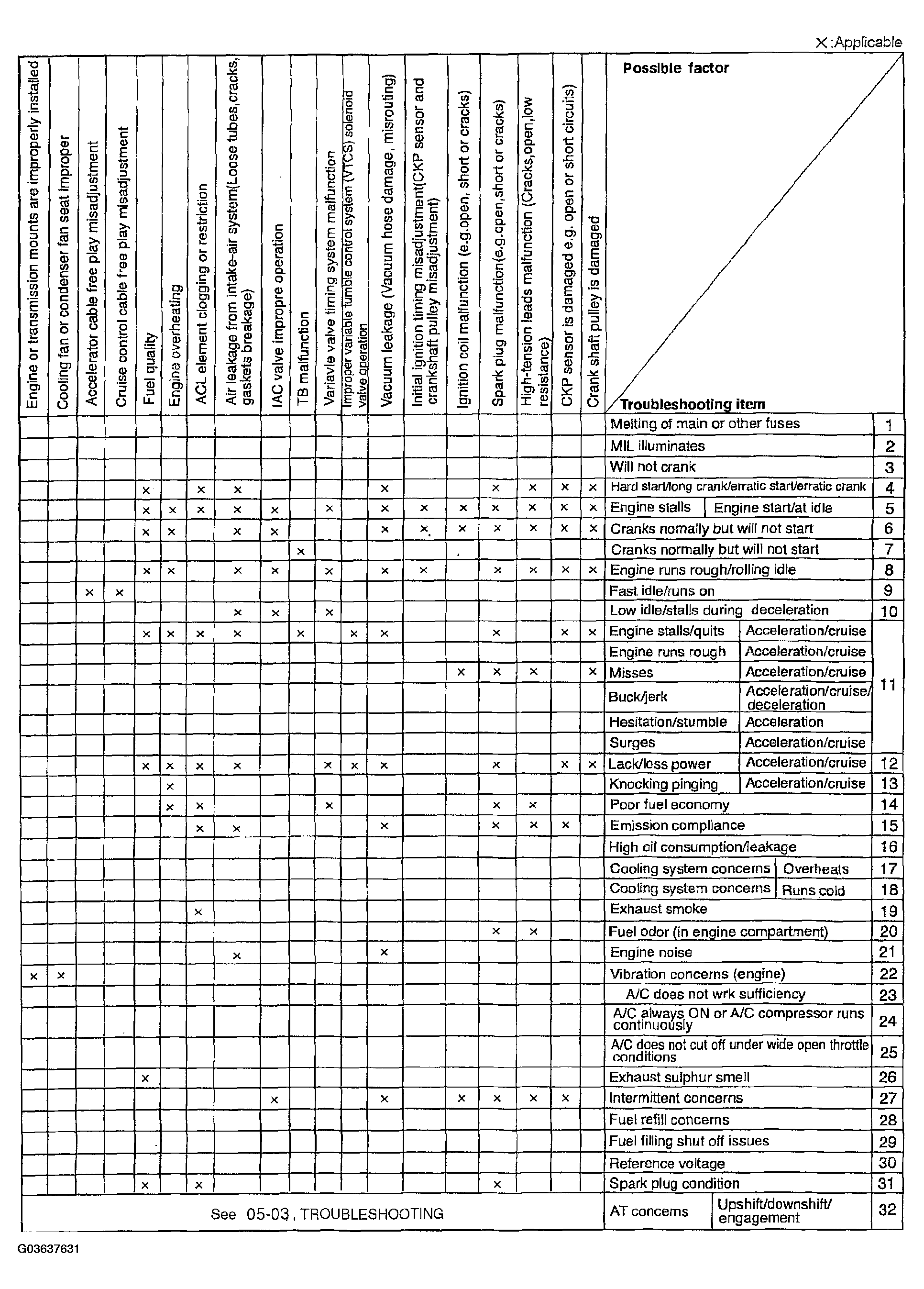

Fig 4: Quick Diagnostic Symptom Chart [BP, BP With TC] (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
