Brake Pipe Removal Note

  1. Mark the brake pipe connecting positions before removal for reference during installation.

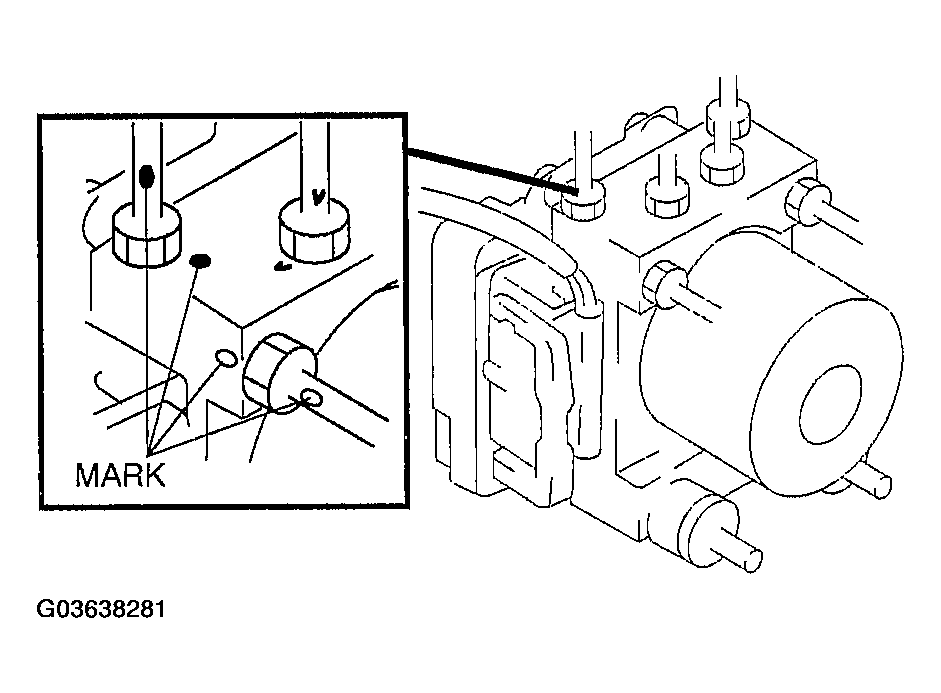

    Fig 1: Identifying Brake Pipe Connecting Positions Mark
    G03638281Courtesy of MAZDA MOTORS CORP.
