Power Steering Oil Pump Removal/Installation

  1. Remove in the order indicated in the table.

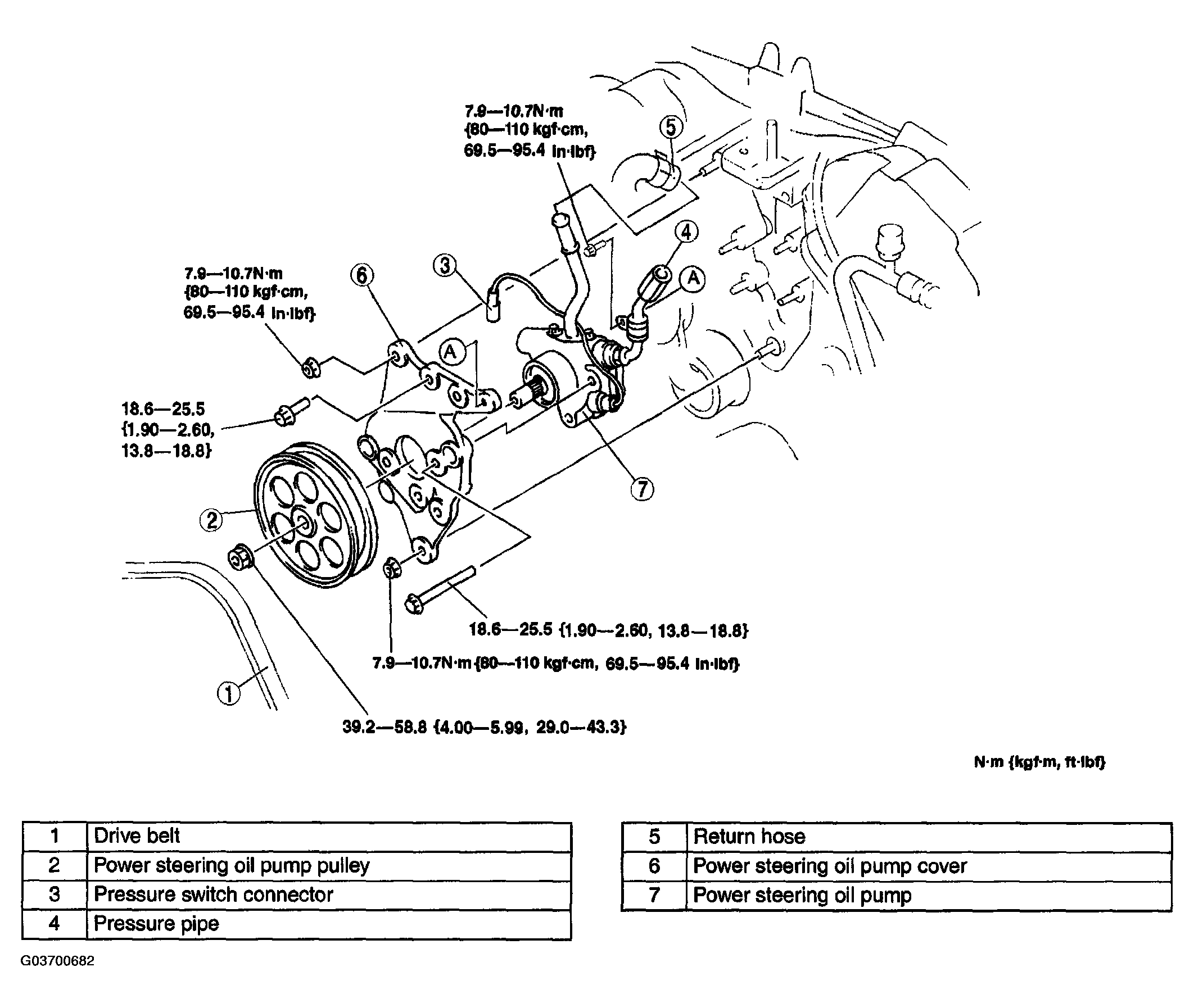

    Fig 1: Removing Power Steering Oil Pump Components - With Torque Specifications
    G03700682Courtesy of MAZDA MOTORS CORP.
  2. Remove the No.3 engine joint bracket. (See ENGINE REMOVAL/INSTALLATION .)
  3. Install in the reverse order of removal.
  4. Adjust the No.3 joint bracket. (See ENGINE REMOVAL/INSTALLATION .)
