How To Use This Repair Information: Symbols

There are eight symbols indicating oil, grease, fluids, sealant and SST (or equivalent) use. These symbols show application points or use of these materials during service.

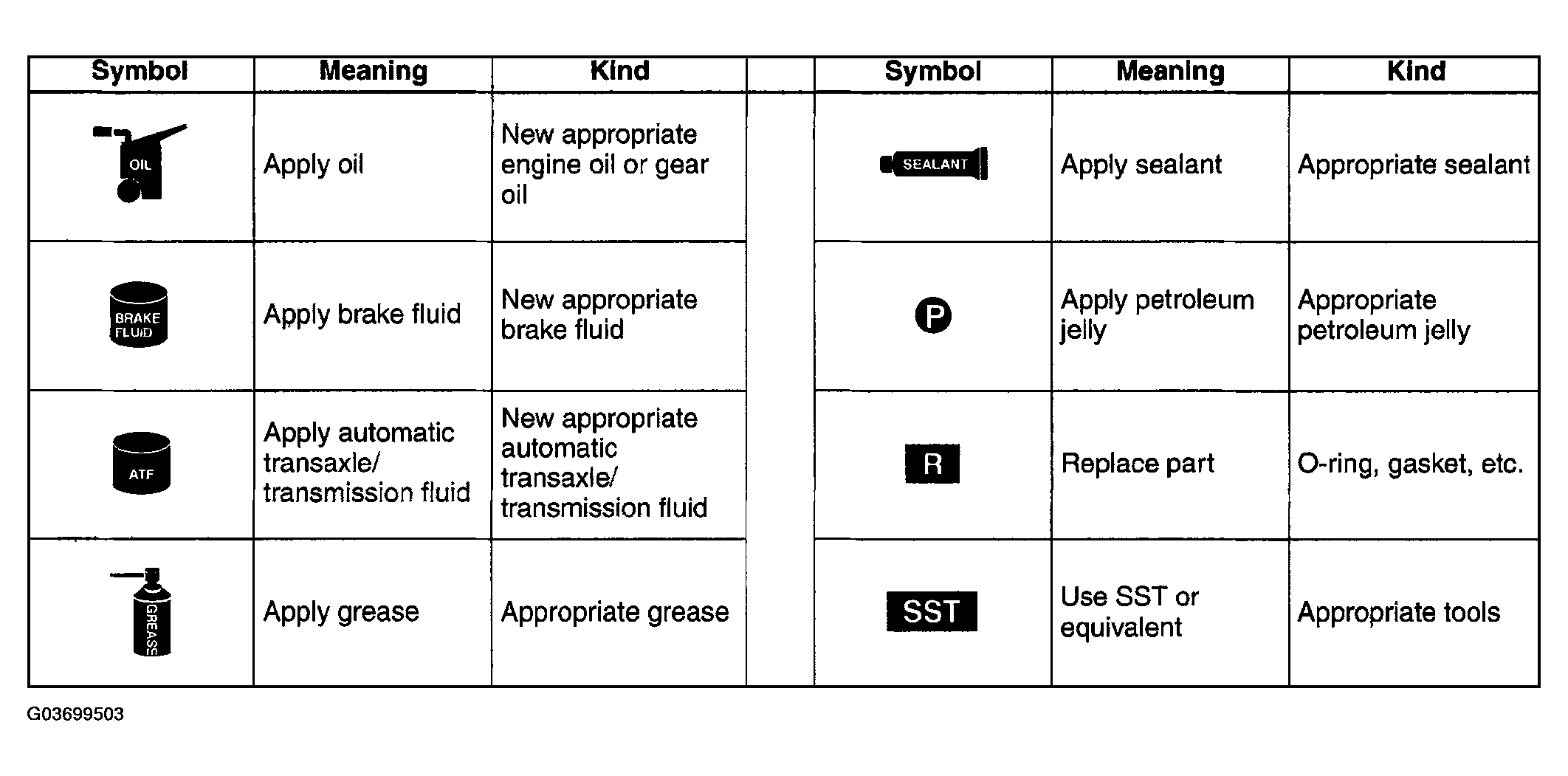

Fig 1: Identifying Symbols
Courtesy of MAZDA MOTORS CORP.
