Starter Removal/Installation: AJ

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery and the battery tray. (See BATTERY REMOVAL/INSTALLATION .)
  2. Remove the air cleaner. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [AJ] .)
  3. Disconnect the selector cable and the selector cable bracket. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .) (ATX)
  4. Position the harness bracket out of the way. (ATX)
  5. Remove in the order indicated in Fig 1 and Fig 2.

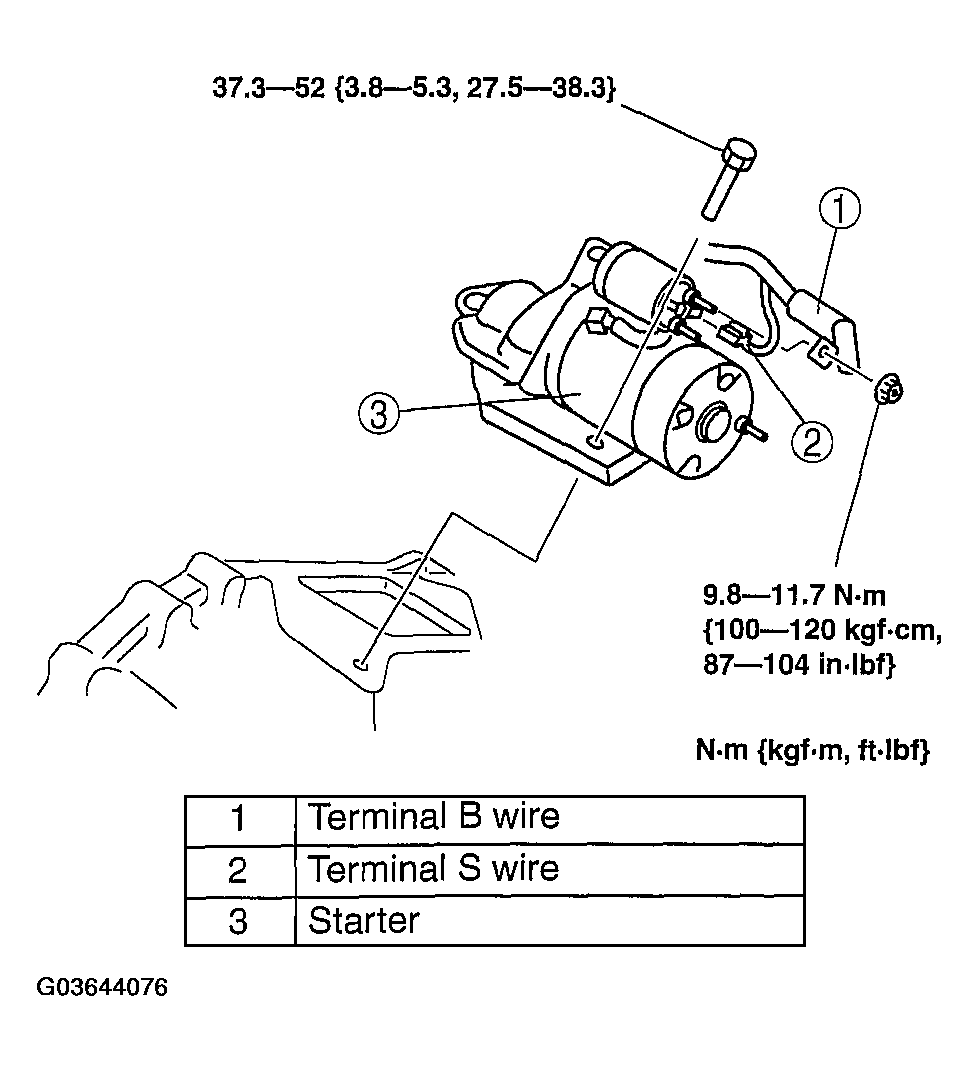

    Fig 1: Starter (AJ With MTX) With Torque Specifications
    G03644076Courtesy of MAZDA MOTORS CORP.

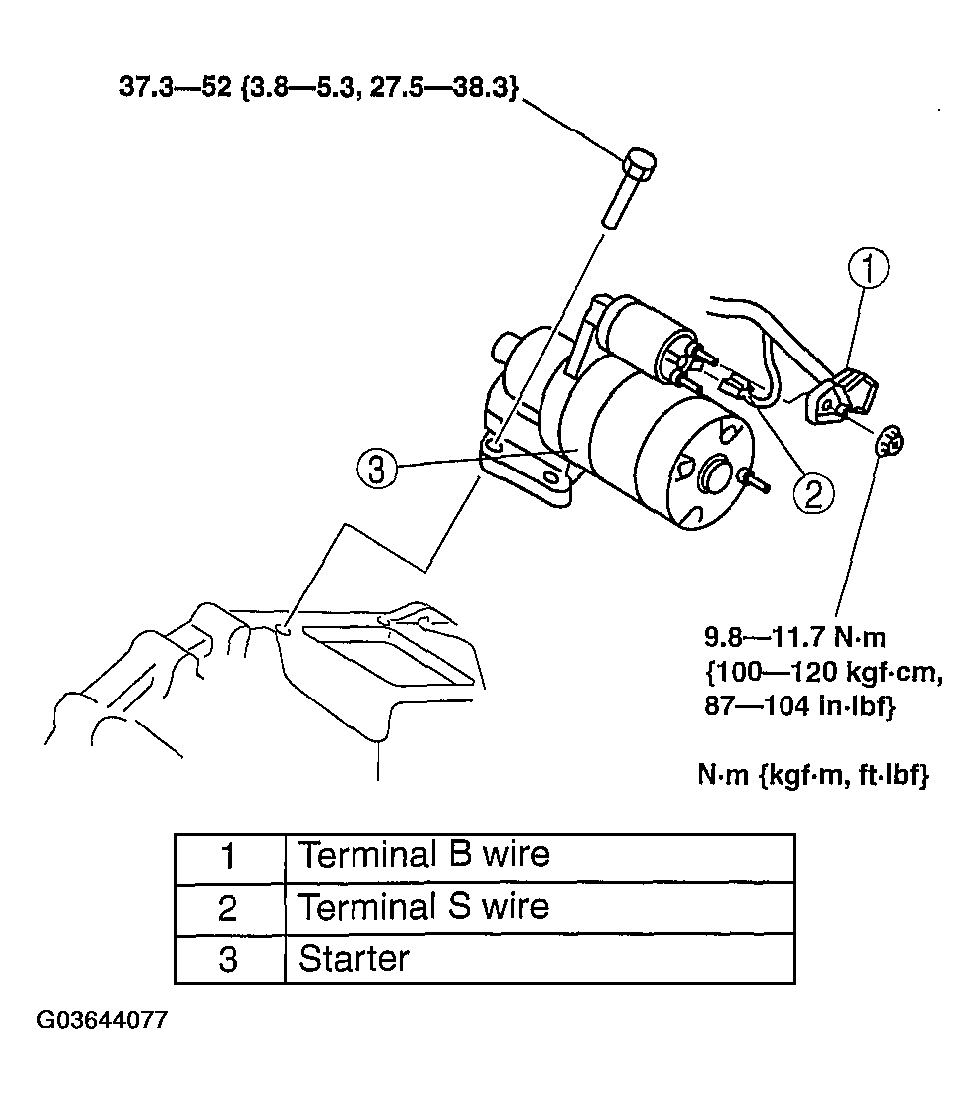

    Fig 2: Starter (AJ With ATX) With Torque Specifications
    G03644077Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
