Sunroof Switch Inspection

  1. Remove the sunroof switch. (See MAP LIGHT REMOVAL/INSTALLATION .)
  2. Inspect for continuity between the sunroof switch terminals using an ohmmeter.
    • If not as specified, replace the sunroof switch.

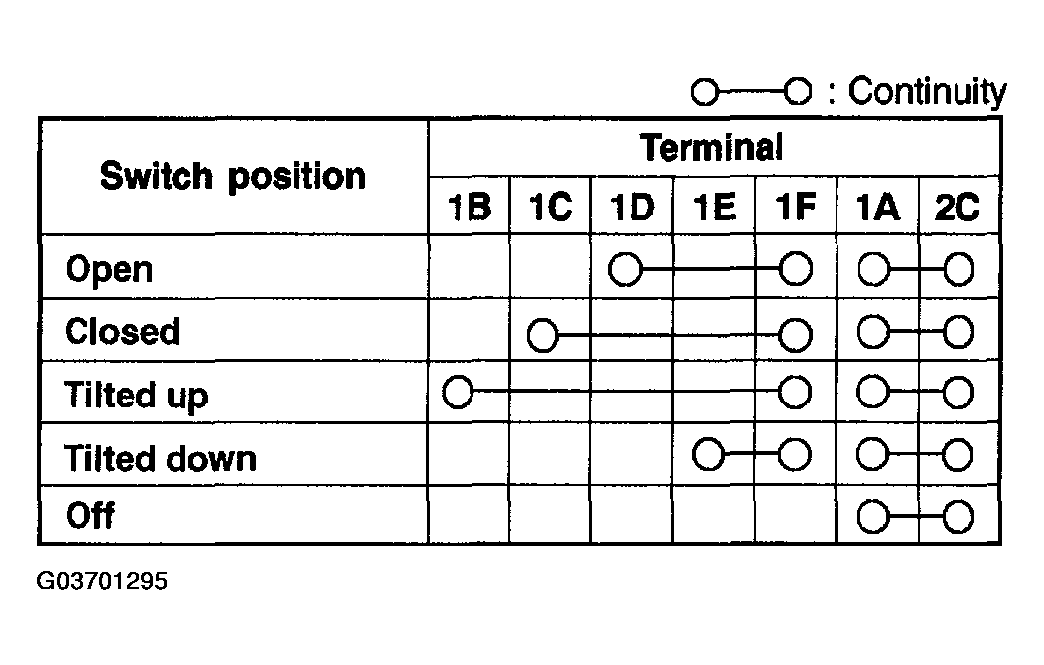

    Fig 1: Checking Continuity Between Sunroof Switch Terminals Chart
    G03701295Courtesy of MAZDA MOTORS CORP.
    Fig 2: Checking Continuity Between Sunroof Switch Terminals
    G03701296Courtesy of MAZDA MOTORS CORP.
