Sunroof Relay Removal/Installation

  1. Remove the sunroof unit. (See HEADLINER REMOVAL/INSTALLATION .)
  2. Disconnect the connector.
  3. Remove the screw, and remove the sunroof relay.

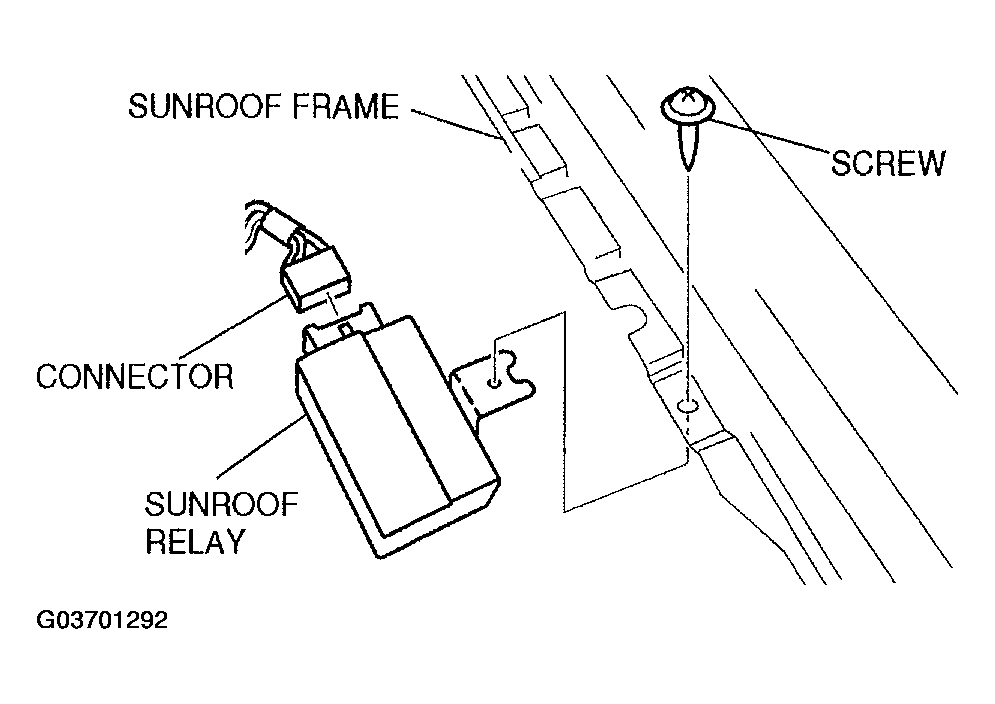

    Fig 1: Removing Sunroof Relay
    G03701292Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
