Glass Panel Adjustment

Measure the gap and height between the glass panel and body.
- If not as specified, loosen the glass panel installation screws and reposition the glass panel.

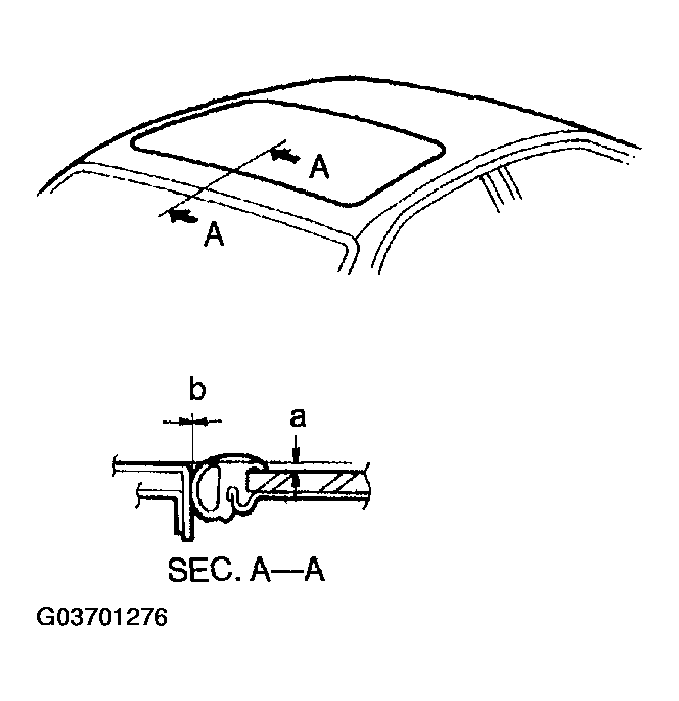

Fig 1: Measuring Gap And Height Between Glass Panel And Body
Courtesy of MAZDA MOTORS CORP.

Clearance
1. : 0.2-2.2 mm {0.008-0.086 in}
2. : 0 mm {0 in}
Tighten the installation screws.
Insert a plastic card (thickness approx. 0.3 mm {0.01 in} ) between the weatherstrip and the body of the vehicle. Verify that the sunroof is shut tightly (there is resistance when the plastic card is moved).
- If the sunroof is not shut tightly, readjust by performing Steps 3 and 4.

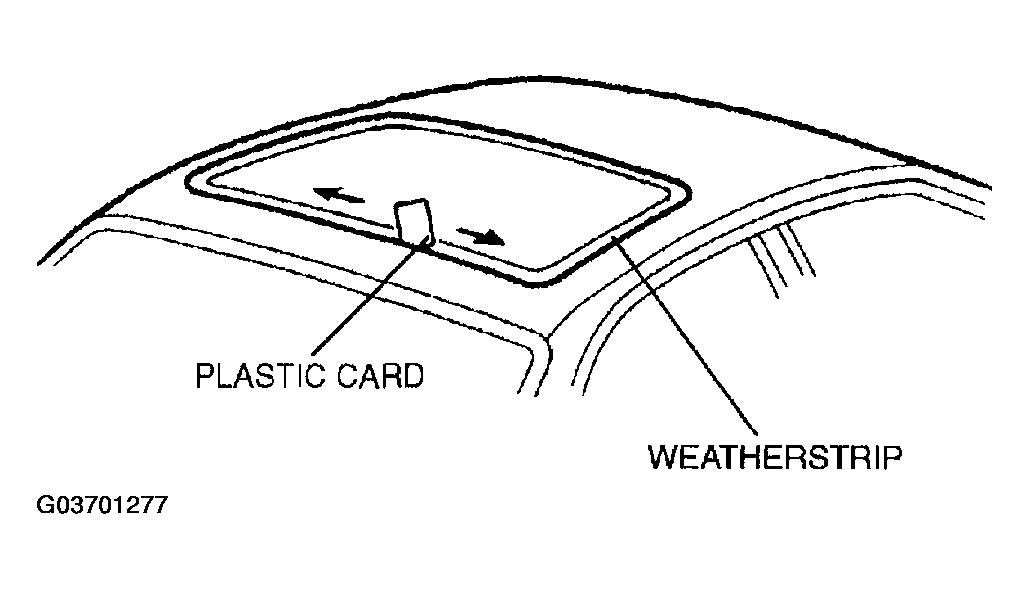

Fig 2: Inserting Plastic Card Between Weatherstrip And Body Of Vehicle
Courtesy of MAZDA MOTORS CORP.
