Long Slider And Adapter Removal/Installation

  1. Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL .) (See SECOND-ROW SEAT REMOVAL .)
  2. Remove the front floor covering. (See FRONT FLOOR COVERING REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

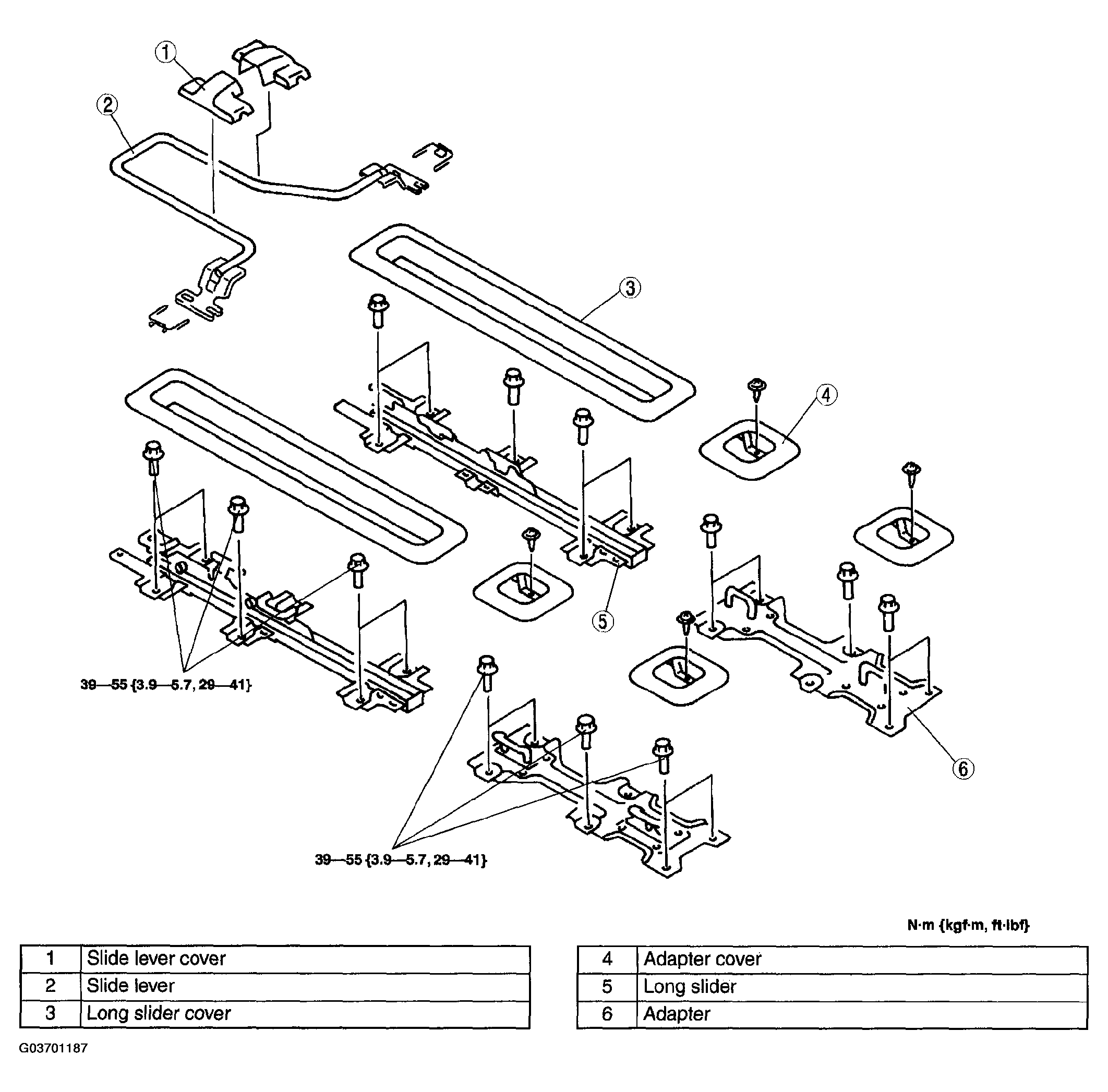

    Fig 1: Removing Long Slider And Adapter
    G03701187Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
