Oil Strainer Installation Note

  1. Tighten the oil strainer bolts.

    Tightening torque

    1. 8-12 N.m {82-122 kgf.cm, 71-106 in.lbf}
  2. Tighten the oil strainer stay nut to 15.0 N.m {153 kgf.cm, 133 in.lbf}  , then tighten it further 45  ° using the SST  .

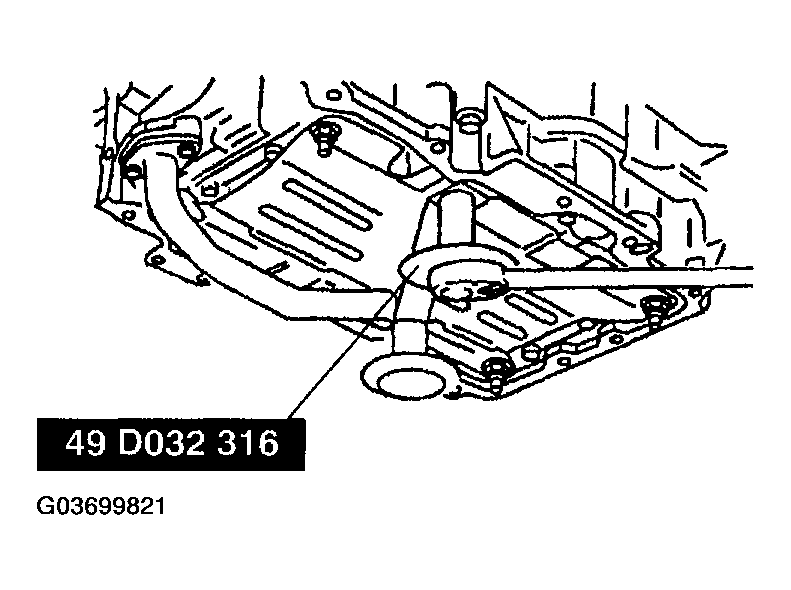

    Fig 1: Tightening Oil Strainer Stay Nut
    G03699821Courtesy of MAZDA MOTORS CORP.
