Automatic Transaxle [Service, Removal & Installation]
>>
Automatic Transaxle Control System Wiring Diagram
Automatic Transaxle Control System Wiring Diagram
See
TRANSMISSION
.

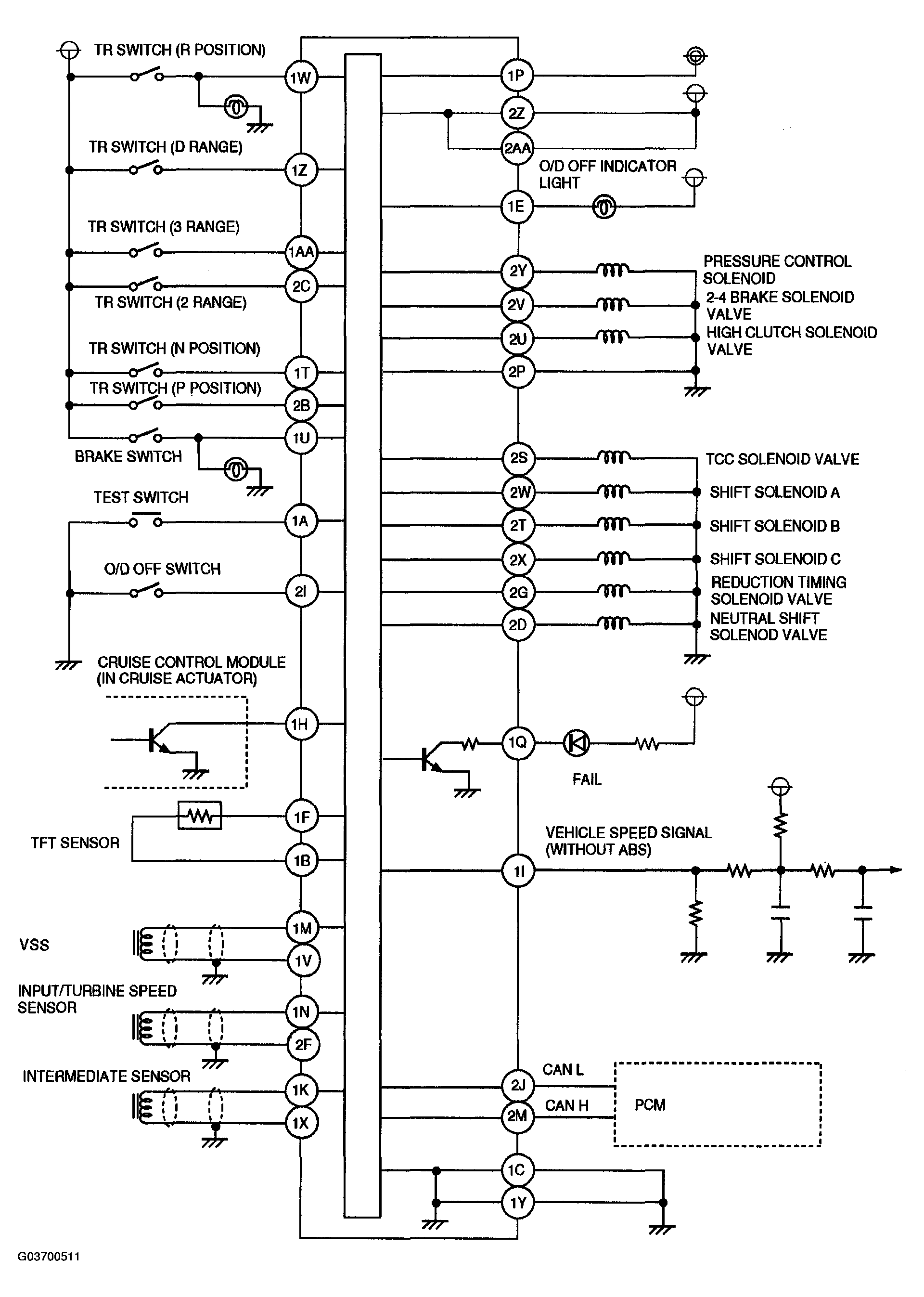

Fig 1: Automatic Transaxle Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
