Transverse Member Removal/Installation
Transverse Member Removal/Installation
Remove in the order indicated in the table.

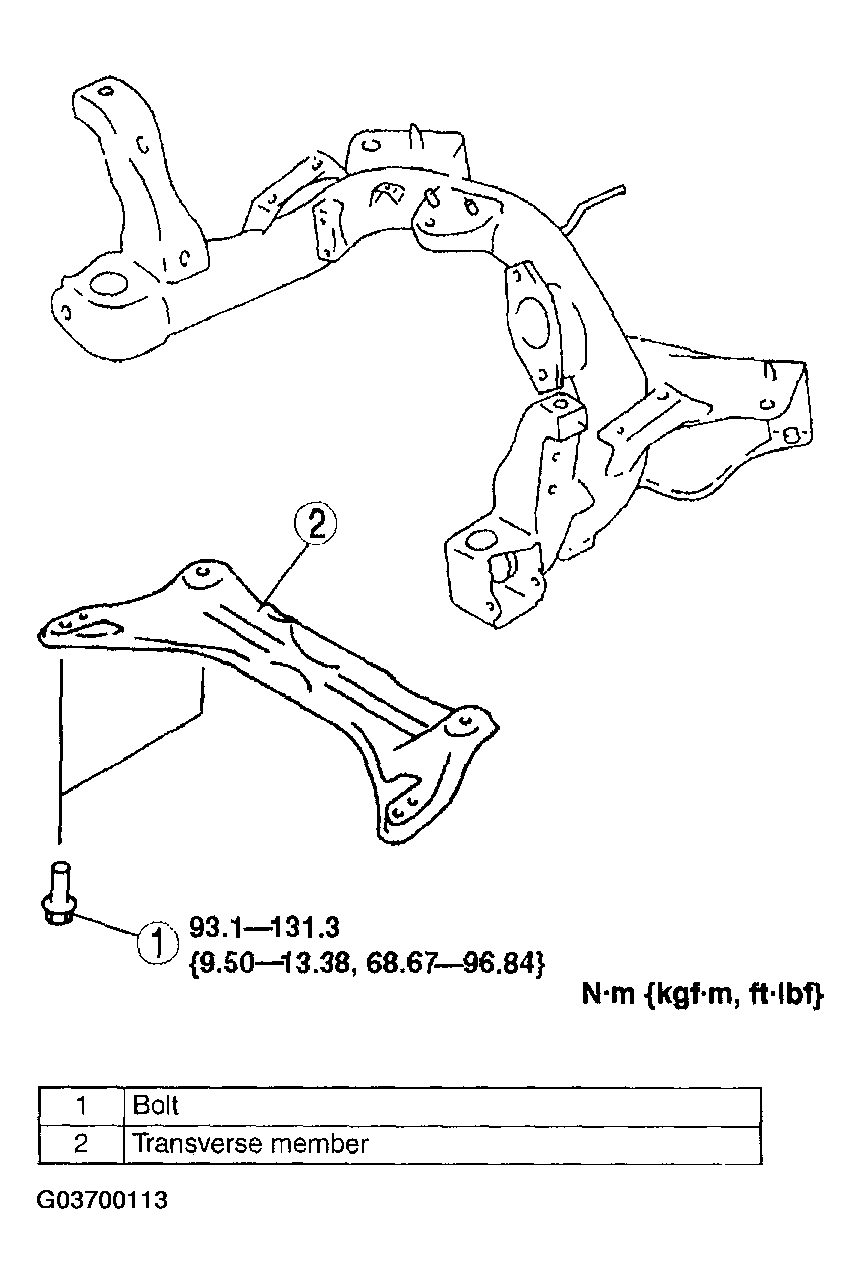

Fig 1: Identifying Bolt And Transverse Member
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
