Front Lower Arm Removal/Installation: Notes

  1. Remove in the order indicated in the table.

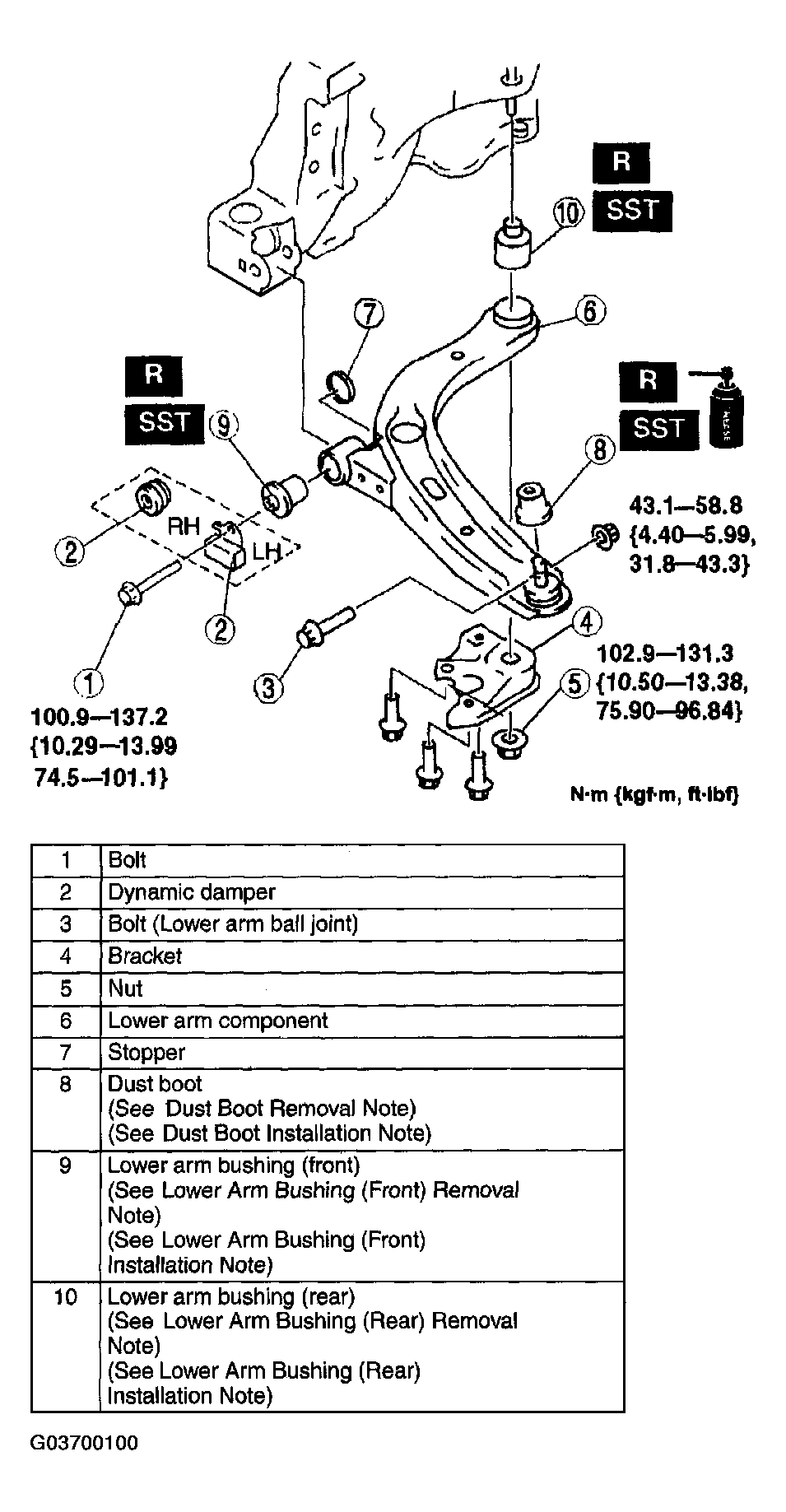

    Fig 1: Removing Front Lower Arm Components In Order
    G03700100Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
