Seal Ring Assembly Note

  1. Assemble the seal rings to the pinion shaft component.
  2. Pull the SST  over the pinion shaft component from both directions. This will correctly shape the seal ring.
  3. Install the oil seal from the pinion shaft gear side.

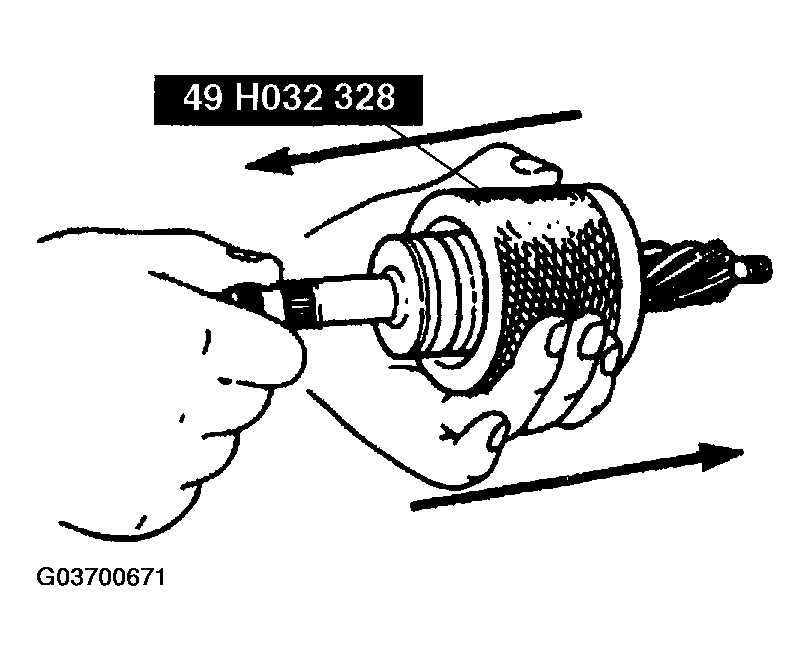

    Fig 1: Pulling SST Over Pinion Shaft Component From Both Directions
    G03700671Courtesy of MAZDA MOTORS CORP.
