Power Steering Oil Pump Disassembly/Assembly: Notes

NOTE:
  • The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.
  1. Disassemble in the order indicated in the table.

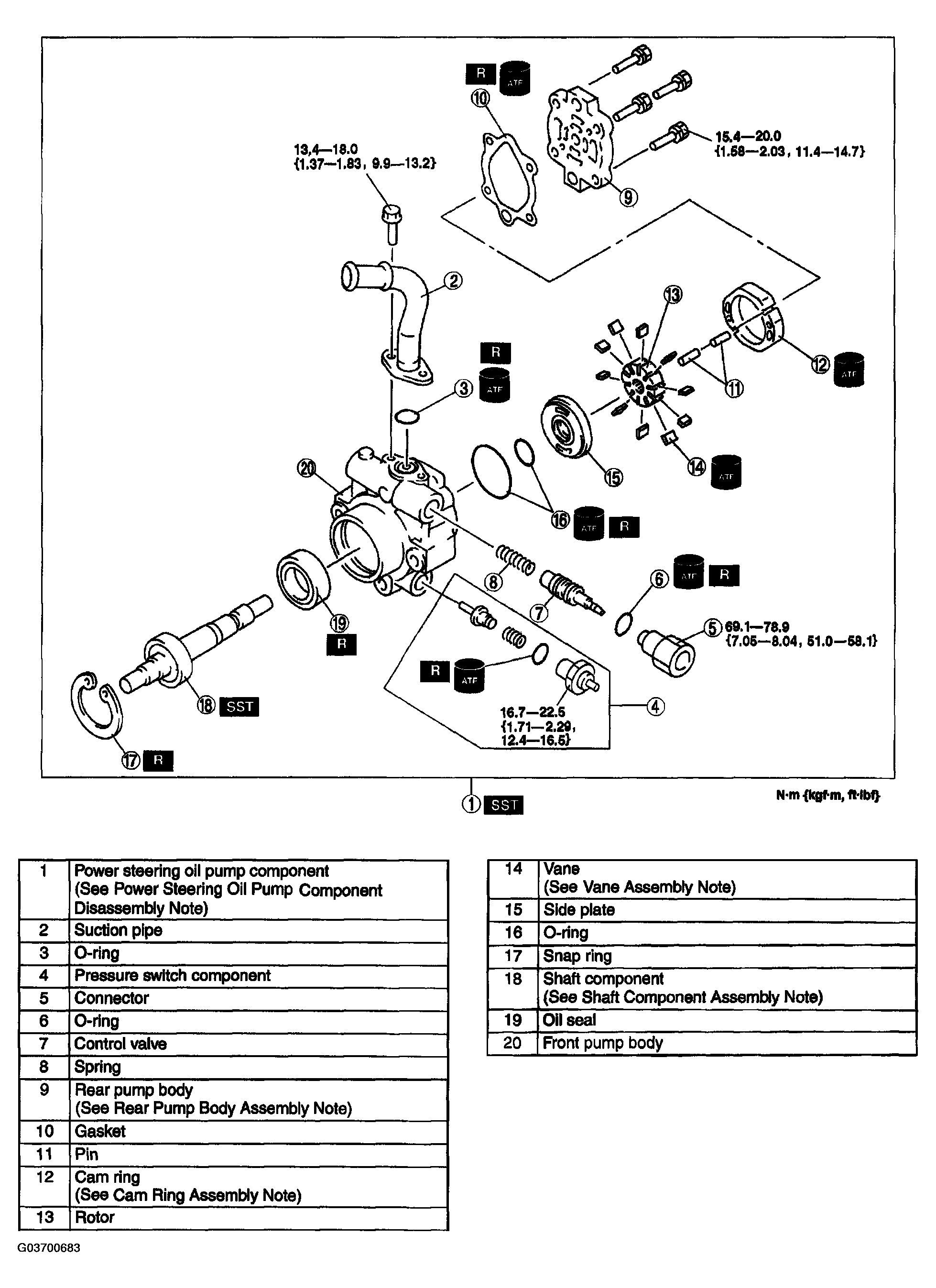

    Fig 1: Disassembling Power Steering Oil Pump - With Torque Specifications
    G03700683Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
