Driver's Seat

  1. Disconnect the buckle switch connector.
  2. Inspect for continuity between the buckle switch terminals using an ohmmeter.
    • If not as specified, replace the front buckle.
    Fig 1: Inspecting Buckle Switch Continuity (Standard Deployment Control System) (1 Of 2)
    G03700958Courtesy of MAZDA MOTORS CORP.

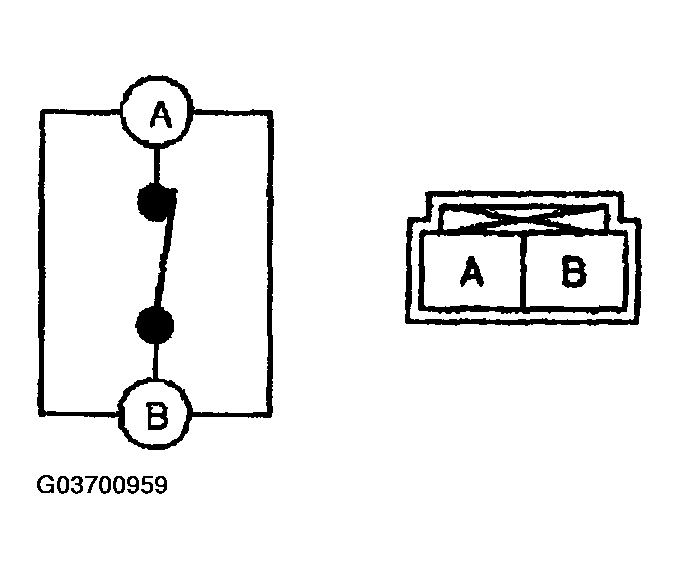

    Fig 2: Inspecting Buckle Switch Continuity (Standard Deployment Control System) (2 Of 2)
    G03700959Courtesy of MAZDA MOTORS CORP.
