Freeze Frame PID Data Access Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect WDS or equivalent to the vehicle DLC-2 I 16-pin connector located the left side of the center console.
  3. Record the FREEZE FRAME PID DATA by WDS or equivalent.

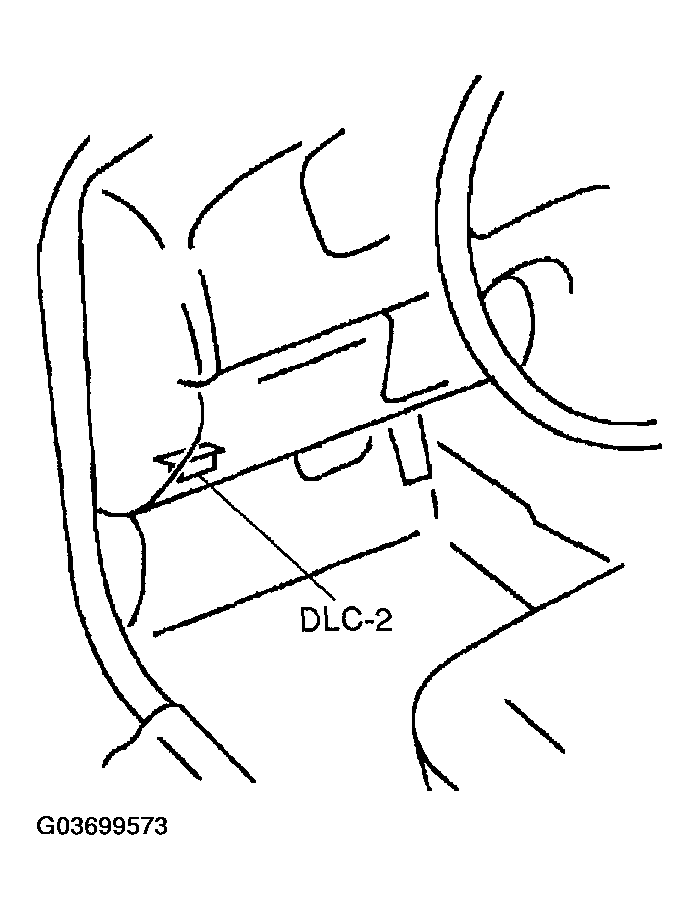

    Fig 1: Locating DLC-2 16-Pin Connector
    G03699573Courtesy of MAZDA MOTORS CORP.
