Diagnostic Monitoring Test Results Access Procedure

  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect WDS or equivalent to the vehicle DLC-2 I 16-pin connector located the left side of the center console.
  3. Access to the DIAGNOSTIC MONITORING TEST RESULTS and read the test results by WDS or equivalent.

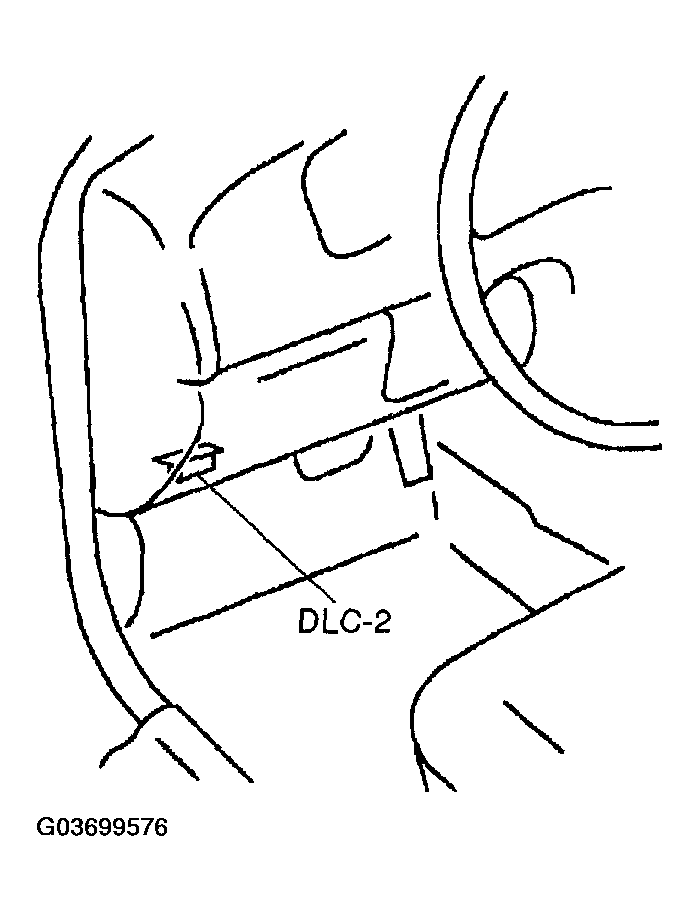

    Fig 1: Locating DLC-2 16-Pin Connector
    G03699576Courtesy of MAZDA MOTORS CORP.
