Mode 2 (EGR System Repair Verification Drive Mode) With rear HO2S model
- Perform "PCM Adaptive Memory Produce Drive Mode" first.
- Verify that all accessory loads (A/C, headlights, blower fan, rear window defroster) are off.

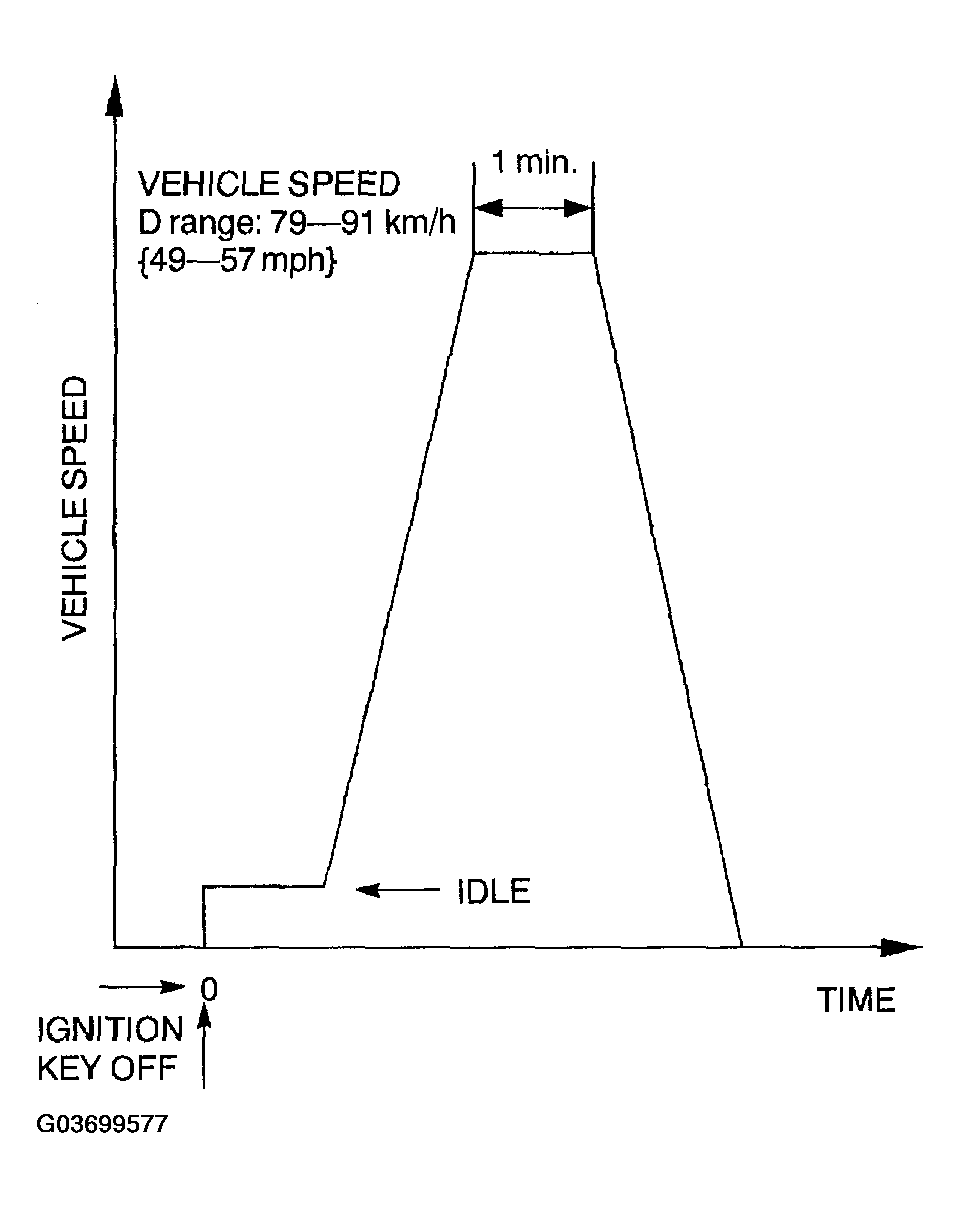

- Drive the vehicle as shown in the graph.
- Stop the vehicle and access to ON BOARD SYSTEM READINESS menu of GENERIC OBD II FUNCTION to verify the OBD monitoring status.
- If completed, the OBD monitoring status items change from non-completed to completed.
- If not completed, turn the key off then repeat from Step 3.
- Access DIAGNOSTIC MONITORING TEST RESULTS menu of GENERIC OBD II FUNCTIONS to verify the monitor results.
- If detected values are not within specification, repair has not been completed.
- Verify no DTCs are available.
Courtesy of MAZDA MOTORS CORP.
