Home >> Mazda >> 2005 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System AJ] >> DTC P0139, P0159 >> Notes

DTC P0139, P0159: Notes

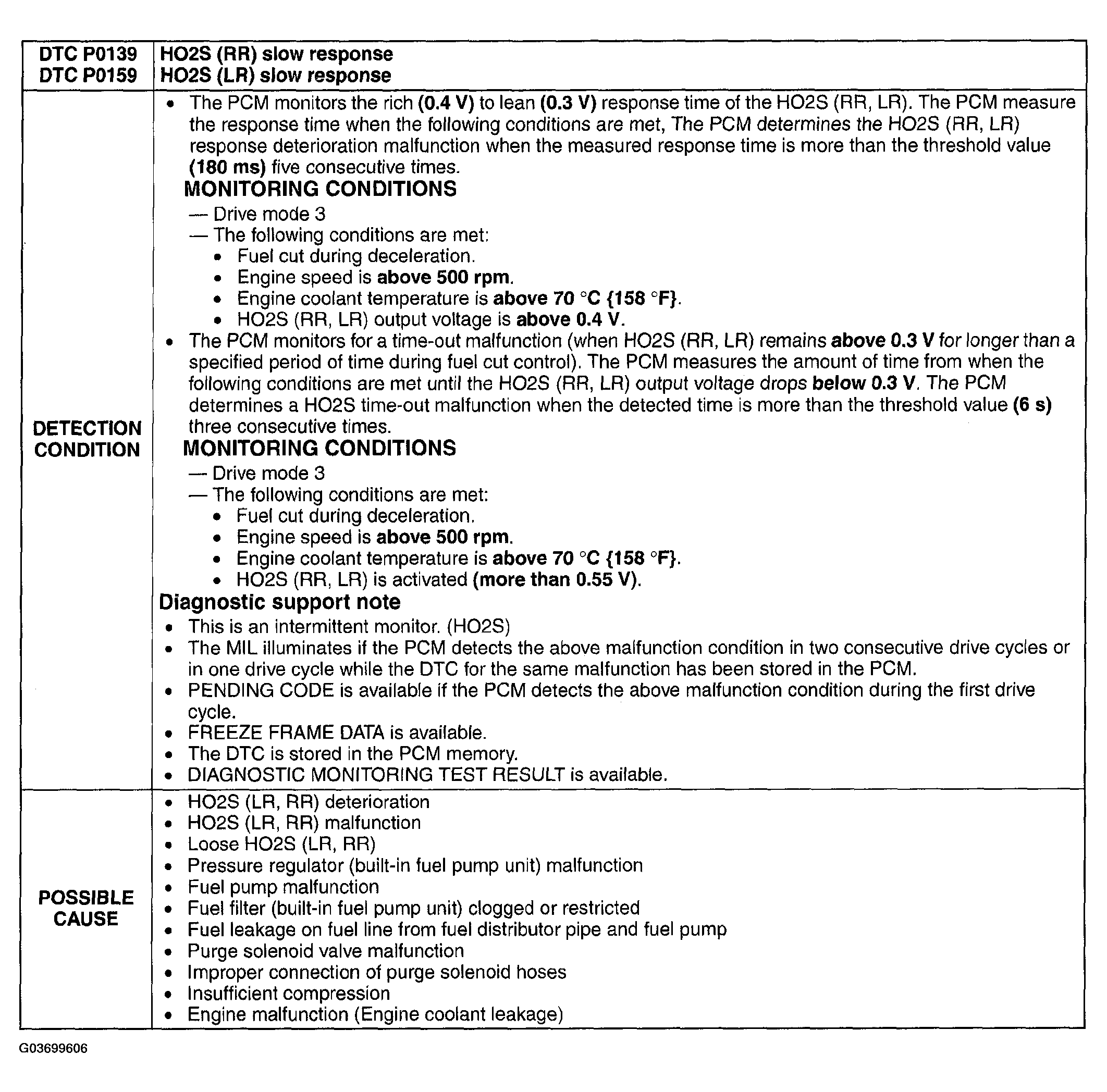

Fig 1: DTC P0139, P0159 - Detection Condition And Possible Cause

G03699606

Courtesy of MAZDA MOTORS CORP.
