Water temperature gauge control signal

PCM terminal: 70 (+)-100 (-)
Oscilloscope setting: 1V/DIV (Y), 40ms/DIV (X), DC range
Vehicle condition: idle after warm up

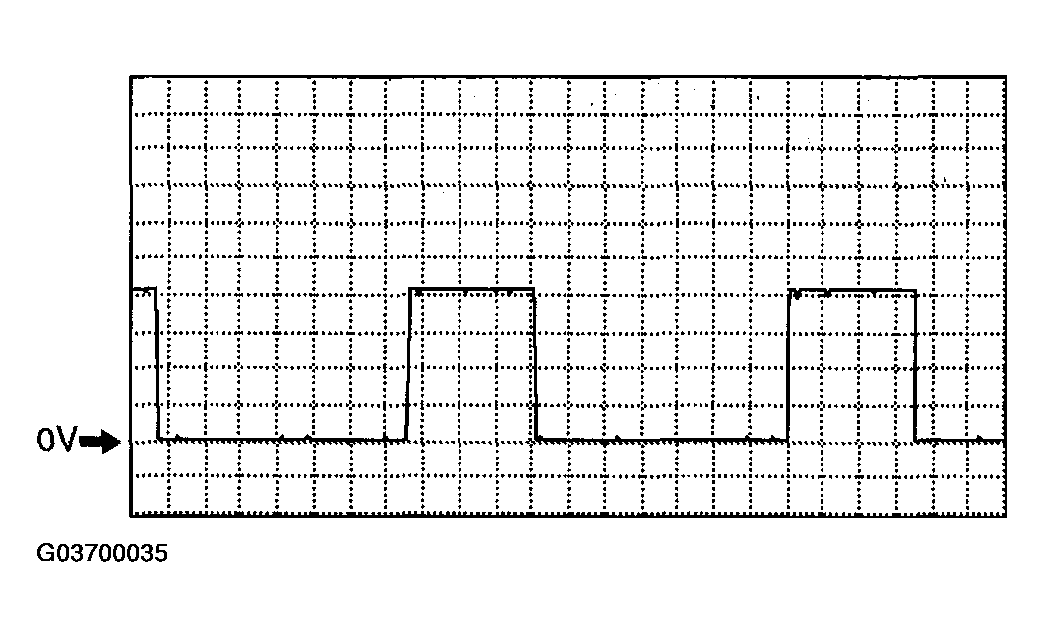

Fig 1: Identifying Oscilloscope Graph Water Temperature Gauge Control Signal
Courtesy of MAZDA MOTORS CORP.
