Inspection Using An Oscilloscope (Reference): CMP

PCM terminal: 28 (+)-2 (-)
Oscilloscope setting: 0.5V/DIV(Y),10ms/DIV(X), AC range
Vehicle condition: idle after warm up

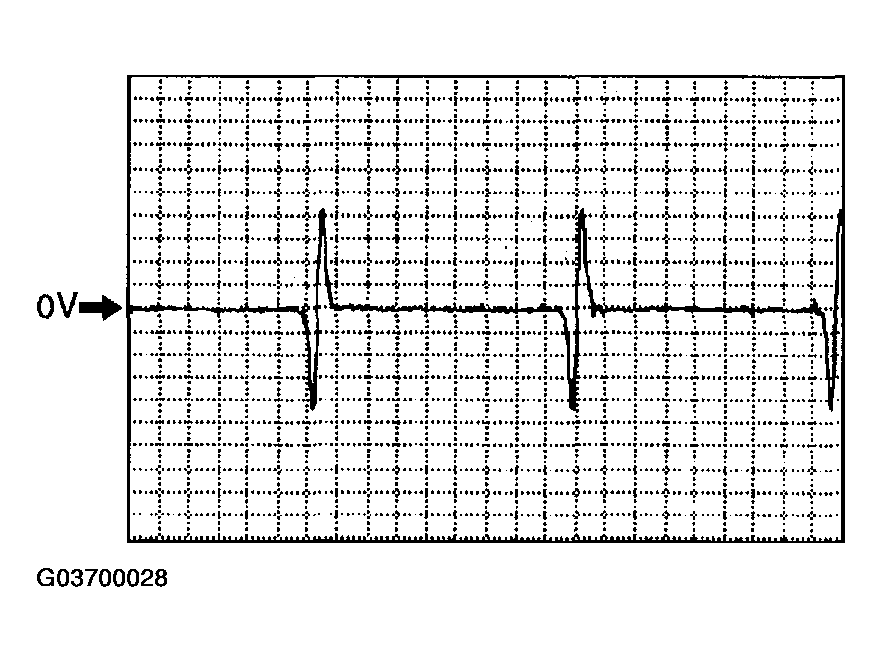

Fig 1: Identifying Oscilloscope Graph (CMP)
Courtesy of MAZDA MOTORS CORP.
