Engine Mount Member Removal Note

  1. Remove the wiper motor and link. (See WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION .)
  2. Suspend the engine using the SSTs  .

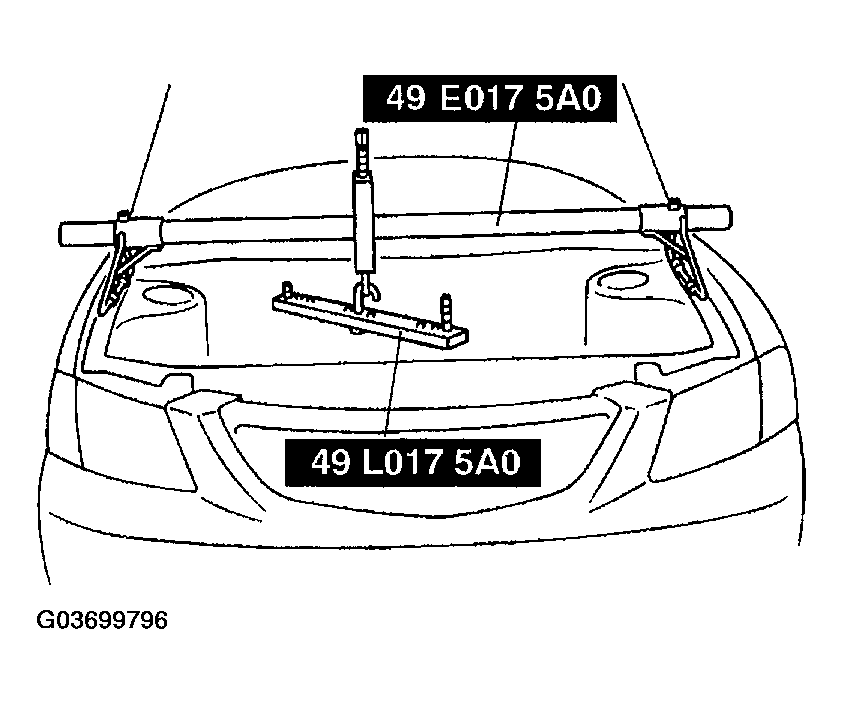

    Fig 1: Identifying Engine Lifting Harness
    G03699796Courtesy of MAZDA MOTORS CORP.
  3. Remove the No.2 engine mount nut A.
    Fig 2: Locating No.2 Engine Mount Nut A
    G03699797Courtesy of MAZDA MOTORS CORP.
