Warning And Indicator Light Bulb Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  3. Turn the socket counterclockwise to remove the bulb as shown in Fig 1.

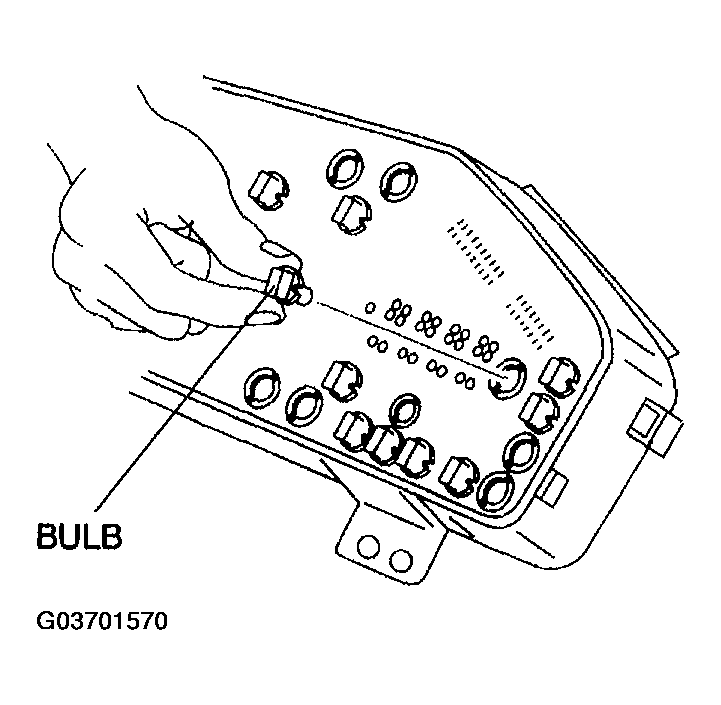

    Fig 1: Removing Warning And Indicator Light Bulb
    G03701570Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
