Sunroof Unit Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION .)
  3. Remove the glass panel. (See GLASS PANEL REMOVAL/INSTALLATION .)
  4. Disconnect the front and rear drain hose from the sunroof frame.
  5. Remove the roof harness from the sunroof frame.

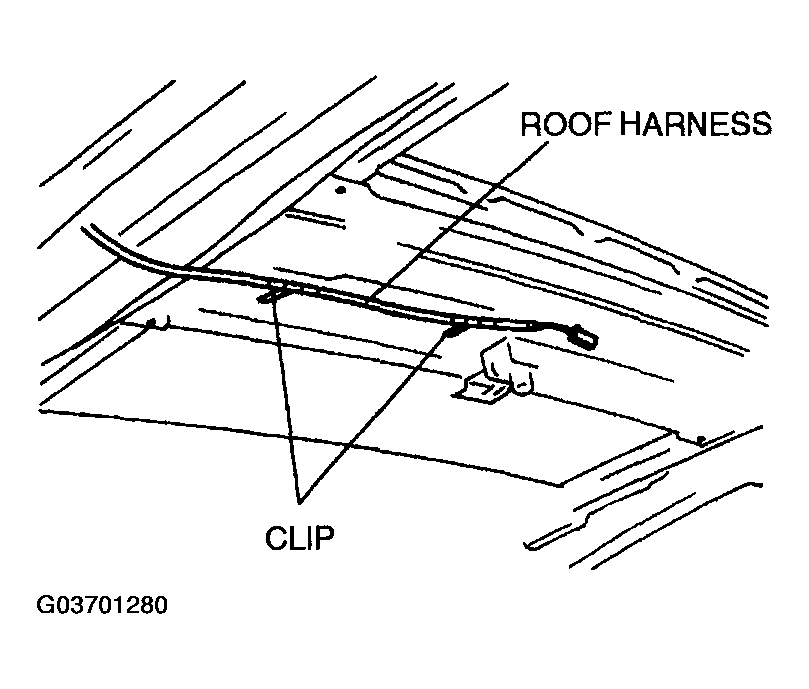

    Fig 1: Removing Roof Harness From Sunroof Frame
    G03701280Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolts and nuts, and then remove the sunroof unit.
  7. Install in the reverse order of removal.
  8. Adjust the glass panel. (See GLASS PANEL ADJUSTMENT .)

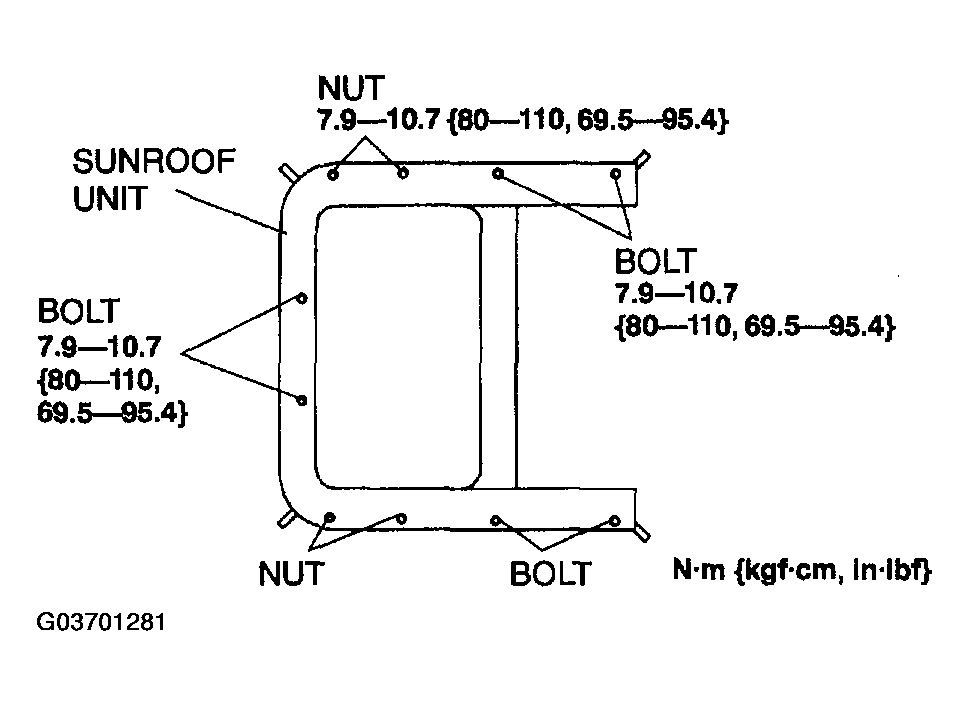

    Fig 2: Removing Bolts And Nuts, And Sunroof Unit
    G03701281Courtesy of MAZDA MOTORS CORP.
