Sliding Door Lock And Opener Removal/Installation

  1. Close the rear door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

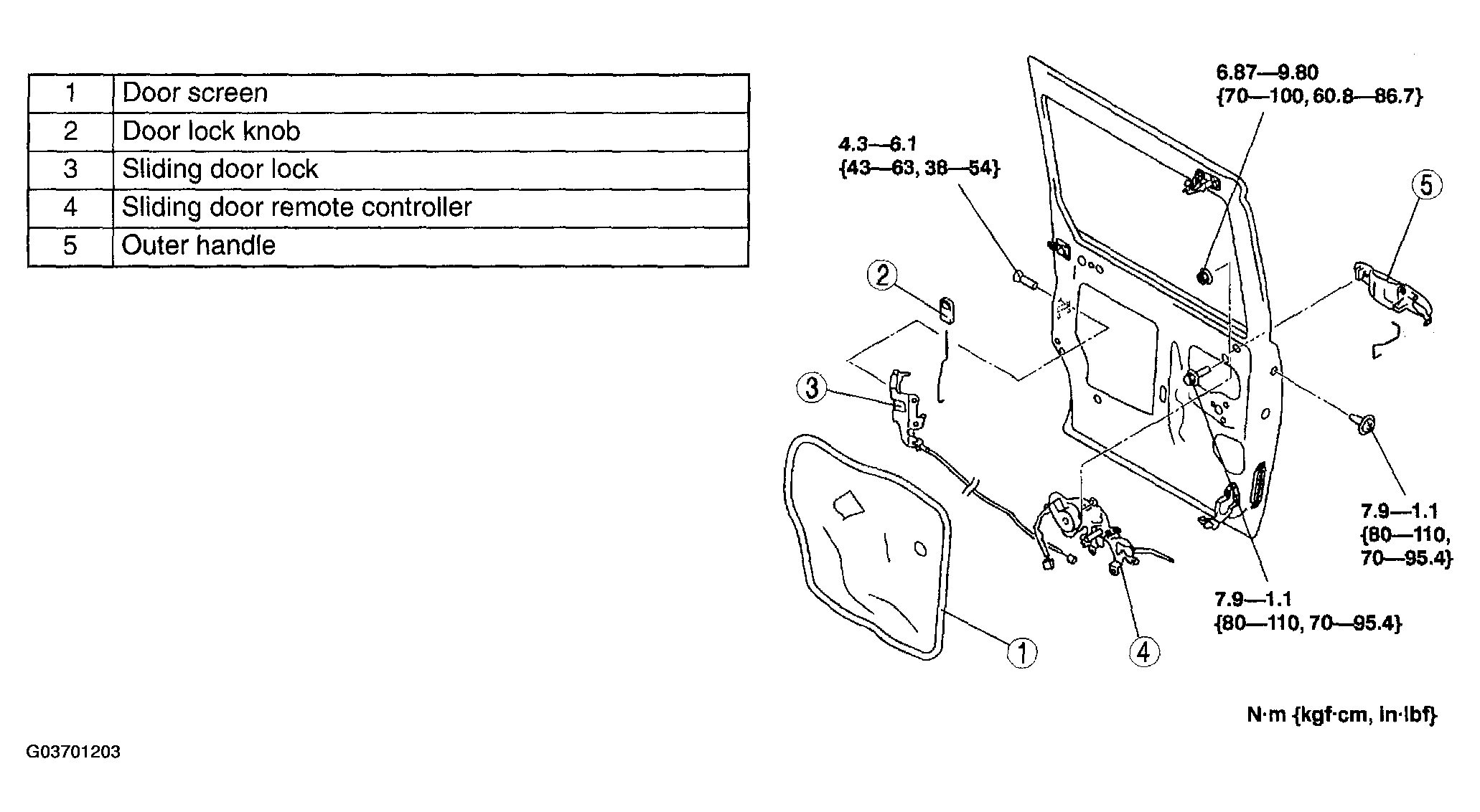

    Fig 1: Removing Sliding Door Lock And Opener - With Torque Specifications
    G03701203Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
