Coil Installation Note

  1. Install the hook 1 to the steering lock.
  2. Install the hook 2 and hook 3 to the steering lock.

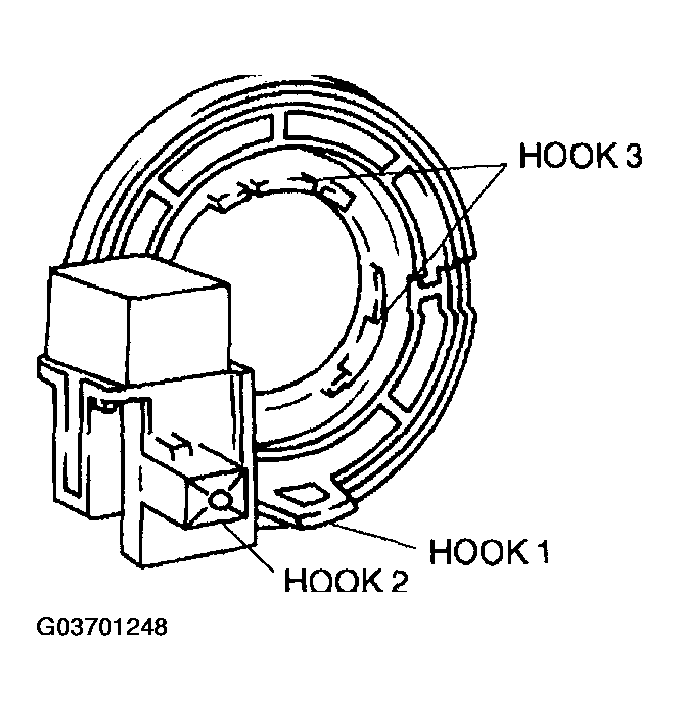

    Fig 1: Identifying Coil Hooks
    G03701248Courtesy of MAZDA MOTORS CORP.
