Cruise Actuator Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the engine cover.
  3. Remove in the order indicated in the table.

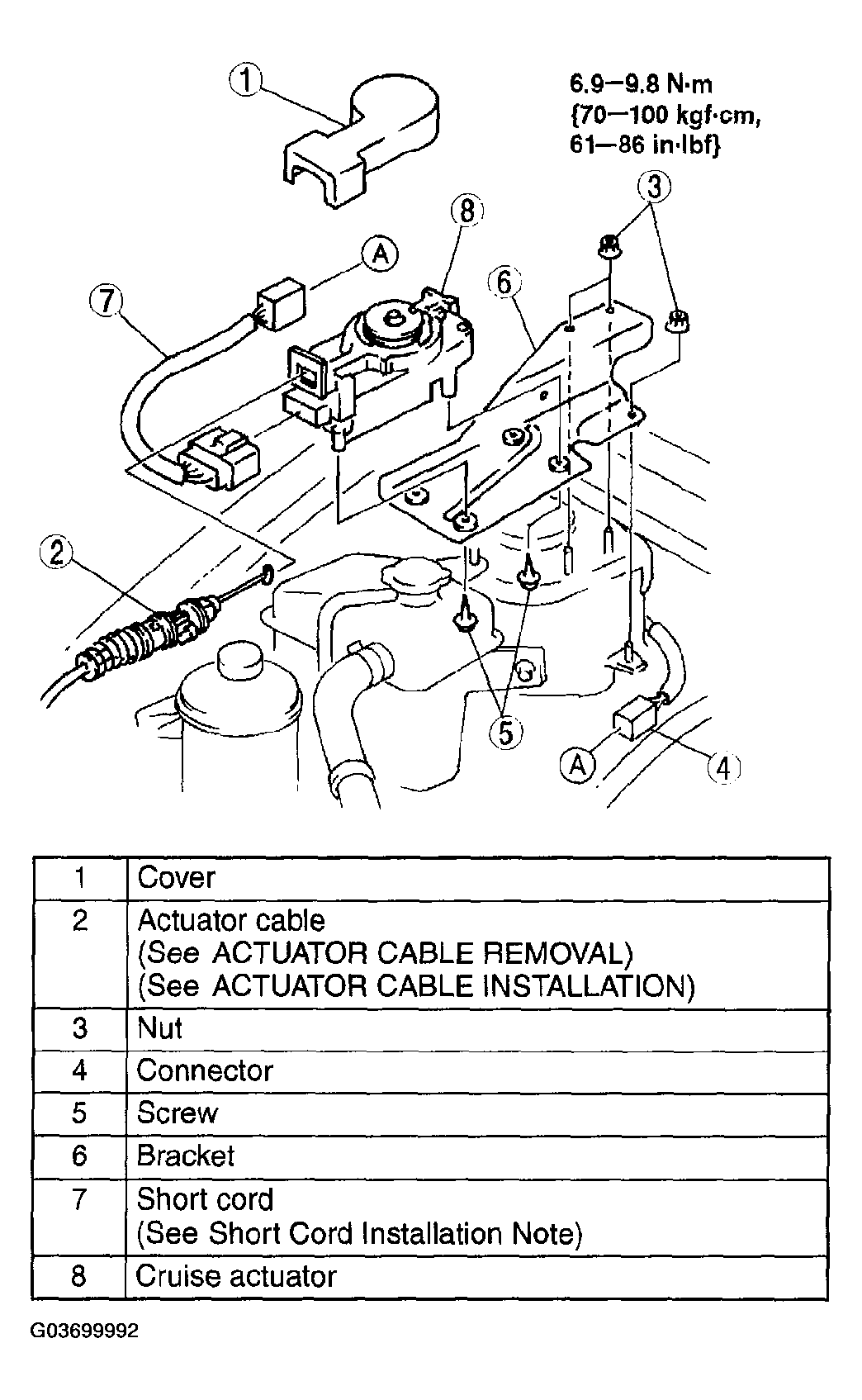

    Fig 1: Removing Cruise Actuator Components In Order
    G03699992Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
