Steering Wheel And Column Removal/Installation: Notes

WARNING:
  • Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM WARNINGS before handling the air bag module. (See SERVICE WARNINGS .)
  1. Remove in the order indicated in the table.

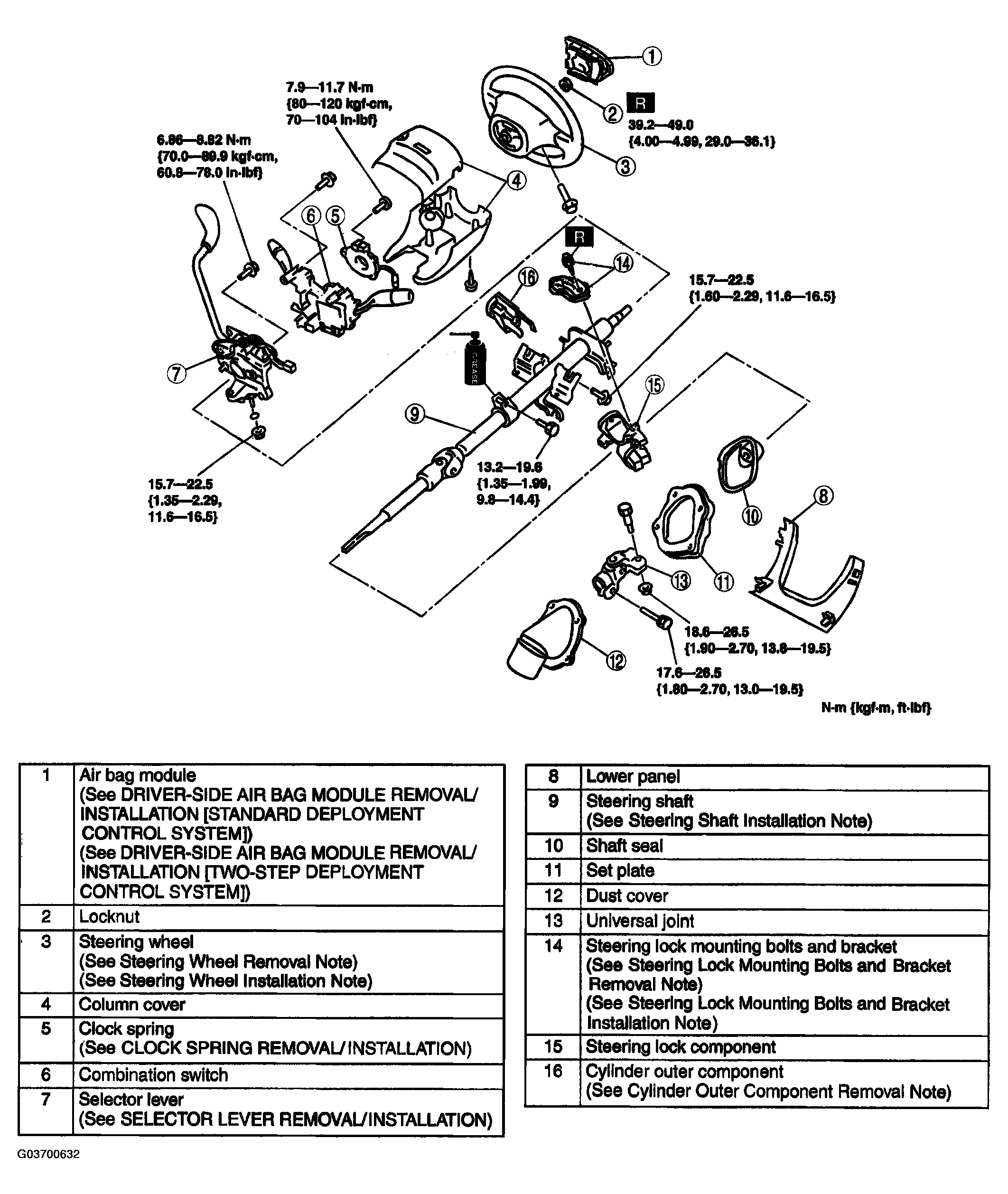

    Fig 1: Removing Steering Wheel And Column Components - With Torque Specifications
    G03700632Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
