Foreword [Standard Deployment Control System]: Flowchart

NOTE:

• While performing the inspection of the past malfunction code, the applicable DTCs may be added to memory by removing or disconnecting the related parts. Inspect only the DTCs that were indicated before inspecting.
• When DTCs of present malfunction are no longer output after present and/or past malfunctions have been repaired, be sure to perform past malfunction display cancellation to prevent repair of malfunctions that have already been repaired.

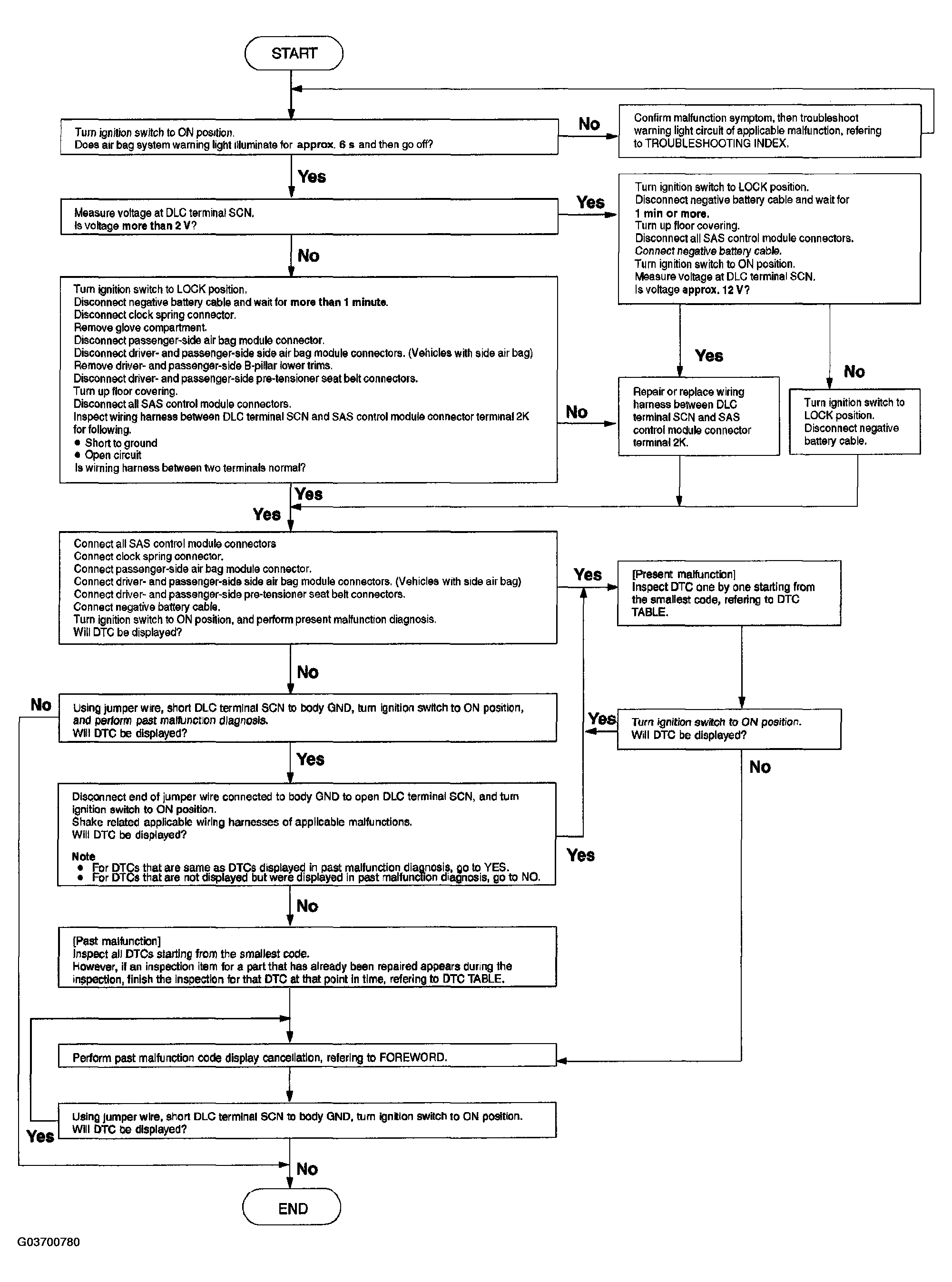

Fig 1: Standard Deployment Control System Troubleshooting Flow Chart

Courtesy of MAZDA MOTORS CORP.
