DTC Table [Standard Deployment Control System]
- DTCs are common for present and past malfunction diagnosis.
NOTE:
- When DTCs not shown in the DTC table are displayed, replace the SAS control module.
- After a new SAS control module is installed, the air bag system warning light continuously flashes when the ignition switch is turned to the ON position. This is the deployment authorization standby code output by the SAS control module. Perform the deployment authorization and restore the system to an operational state.
- If the air bag system warning light does not illuminate or remains illuminated when the ignition switch is turned to the ON position, inspect and repair the air bag system warning light circuitry and then confirm that the air bag system warning light is operational.

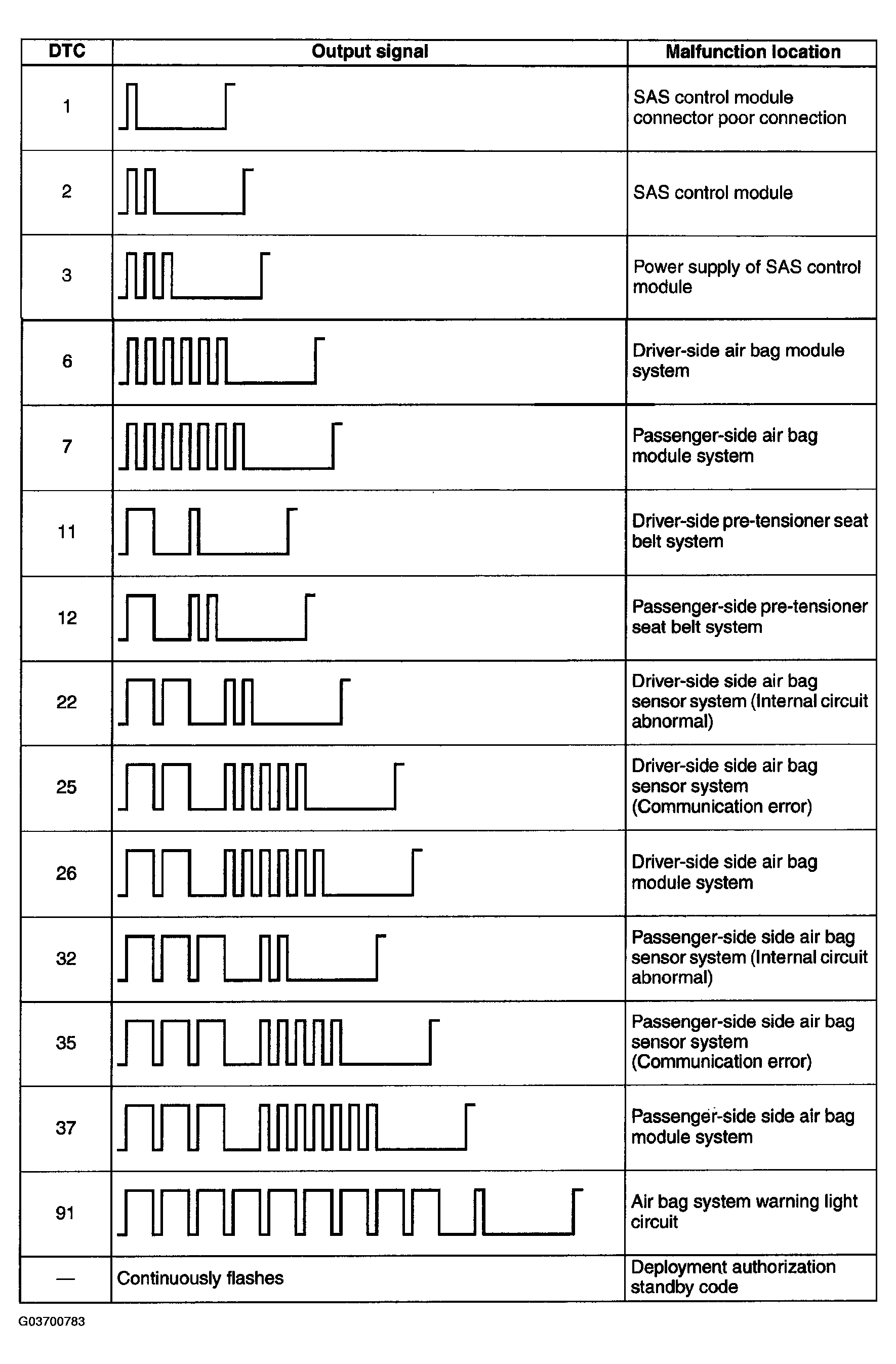

DTC INDEX TABLE
| DTC | Description |
|---|---|
| DTC 1 | SAS CONTROL MODULE CONNECTOR POOR CONNECTION |
| DTC 2 | SAS CONTROL MODULE MALFUNCTION |
| DTC 3 | POWER SUPPLY OF SAS CONTROL MODULE |
| DTC 6 | DRIVER-SIDE AIR BAG MODULE SYSTEM |
| DTC 7 | PASSENGER-SIDE AIR BAG MODULE SYSTEM |
| DTC 11 | DRIVER-SIDE PRE-TENSIONER SEAT BELT SYSTEM |
| DTC 12 | PASSENGER-SIDE PRE-TENSIONER SEAT BELT SYSTEM |
| DTC 22 | DRIVER-SIDE AIR BAG SENSOR SYSTEM (INTERNAL CIRCUIT ABNORMAL) |
| DTC 25 | DRIVER-SIDE SIDE AIR BAG SENSOR SYSTEM (COMMUNICATION ERROR) |
| DTC 26 | DRIVER-SIDE SIDE AIR BAG MODULE SYSTEM |
| DTC 32 | PASSENGER-SIDE SIDE AIR BAG SENSOR SYSTEM (INTERNAL CIRCUIT ABNORMAL) |
| DTC 35 | PASSENGER-SIDE SIDE AIR BAG SENSOR SYSTEM (COMMUNICATION ERROR) |
| DTC 37 | PASSENGER-SIDE SIDE AIR BAG MODULE SYSTEM |
| DTC 91 | AIR BAG SYSTEM WARNING LIGHT CIRCUIT |
