Home >> Mazda >> 2005 >> MPV ES >> Repair and Diagnosis (Single Page) >> Restraints >> Air Bag, SRS >> On-Board Diagnostic (Air Bag System - Standard Deployment Control System) >> DTC 6: Driver-Side Air Bag Module System >> Notes

DTC 6: Driver-Side Air Bag Module System: Notes

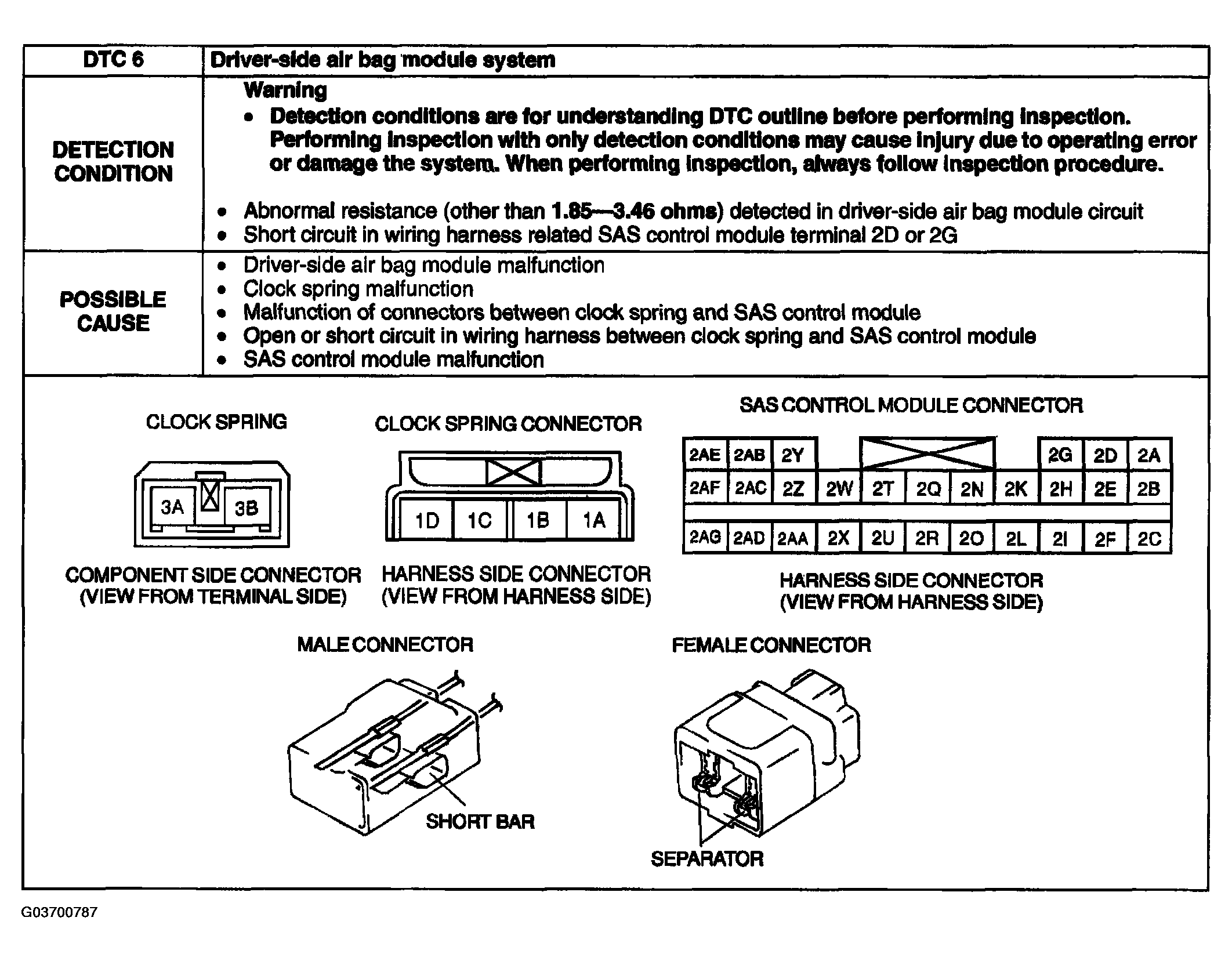

Fig 1: DTC 6 - Detection Condition And Possible Cause Chart

G03700787

Courtesy of MAZDA MOTORS CORP.
