LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
2005
>>
MPV ES
>>
Repair and Diagnosis (Single Page)
>>
Restraints
>>
Air Bag, SRS
>>
On-Board Diagnostic (Air Bag System - Standard Deployment Control System)
>>
DTC 37: Passenger-Side Side Air Bag Module System
>>
Notes
DTC 37: Passenger-Side Side Air Bag Module System: Notes

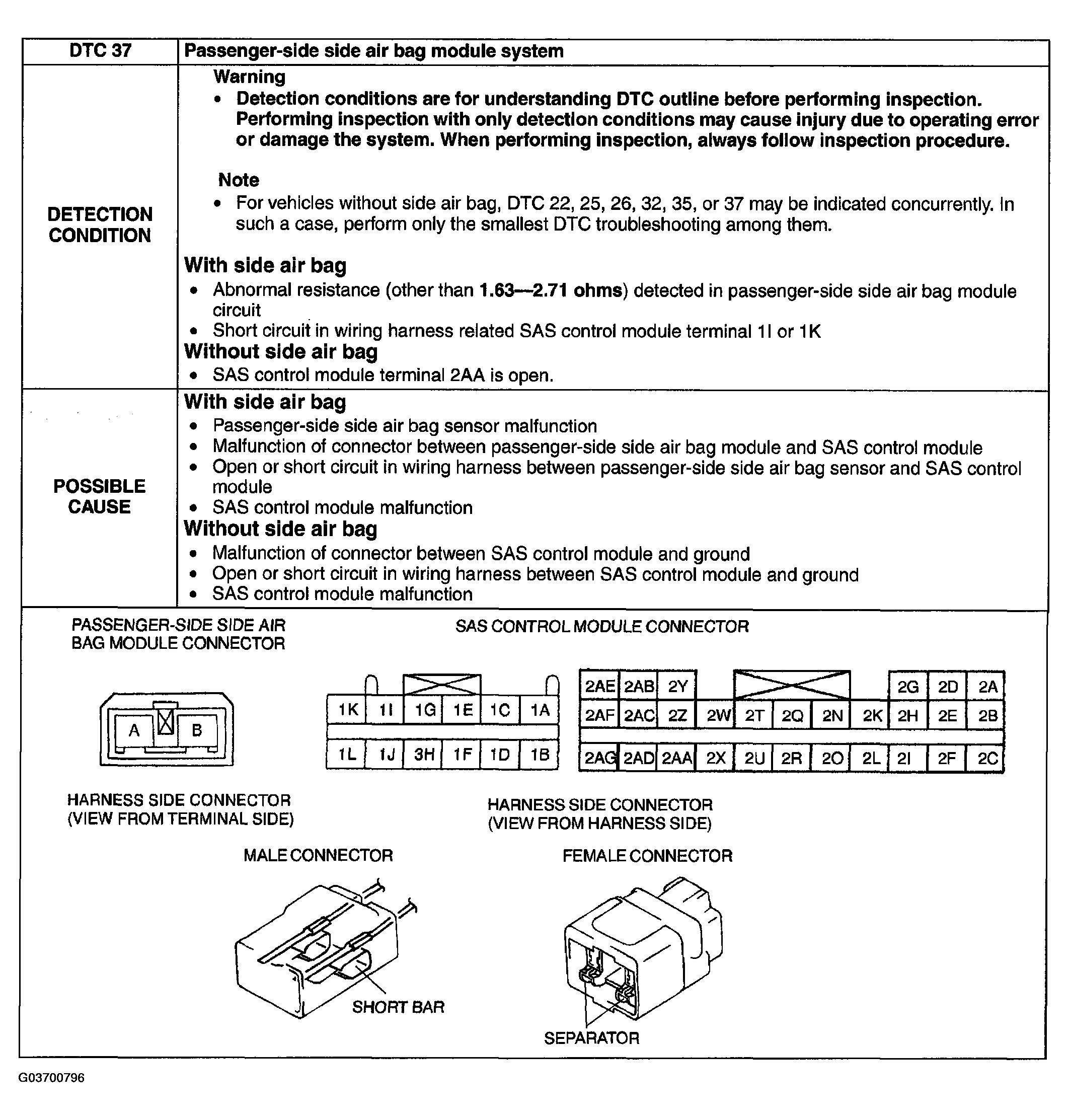

Fig 1: DTC 37 - Detection Condition And Possible Cause Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
