DTC 3: Power Supply Of SAS Control Module: Notes

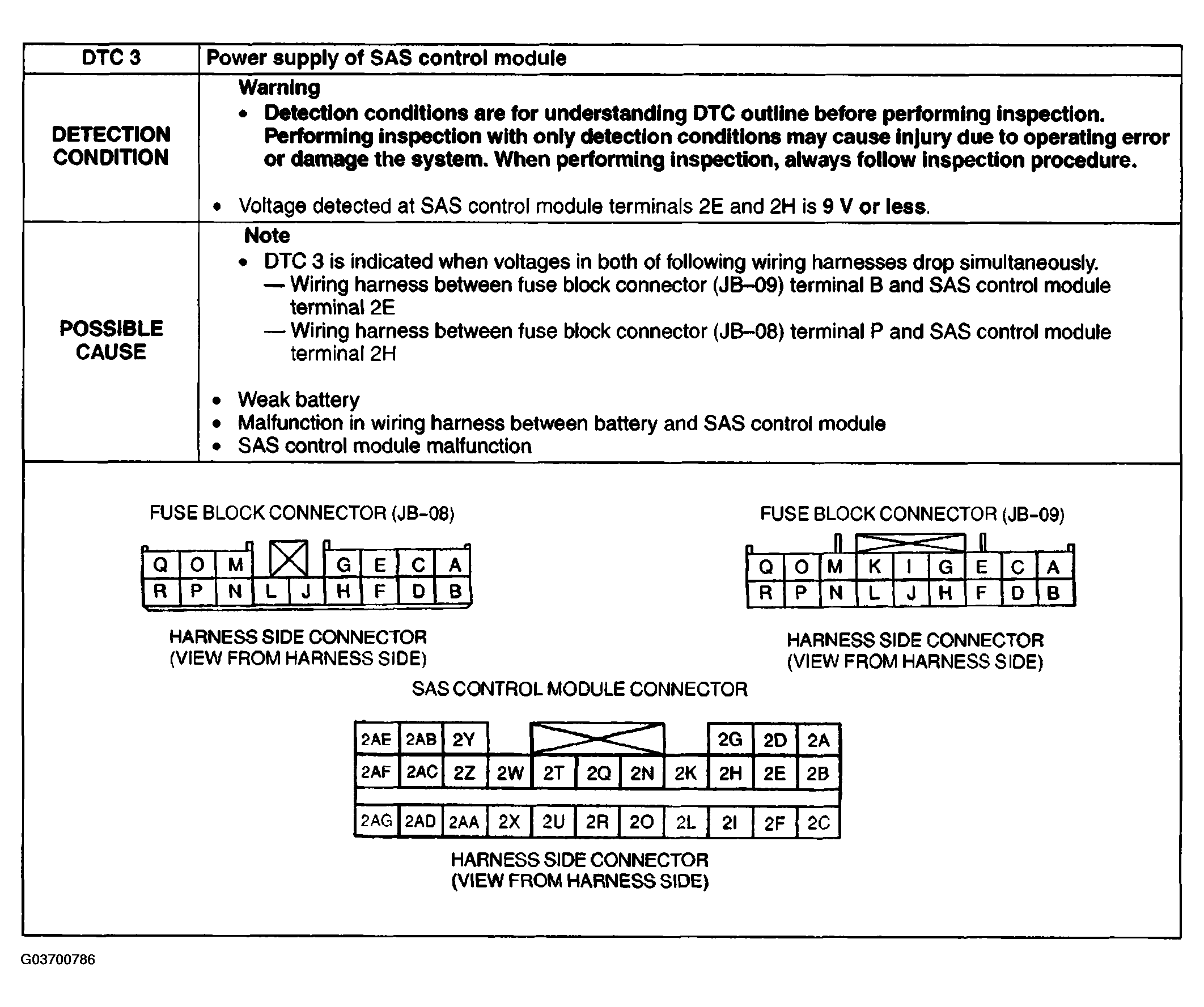

Fig 1: DTC 3 - Detection Condition And Possible Cause Chart

G03700786

Courtesy of MAZDA MOTORS CORP.
