Passenger-Side Air Bag Module Removal/Installation (Two-Step Deployment Control System)
>>
Connector (1) Installation Note
Connector (1) Installation Note
Connect the connector, then install it as shown in
Fig 1
.

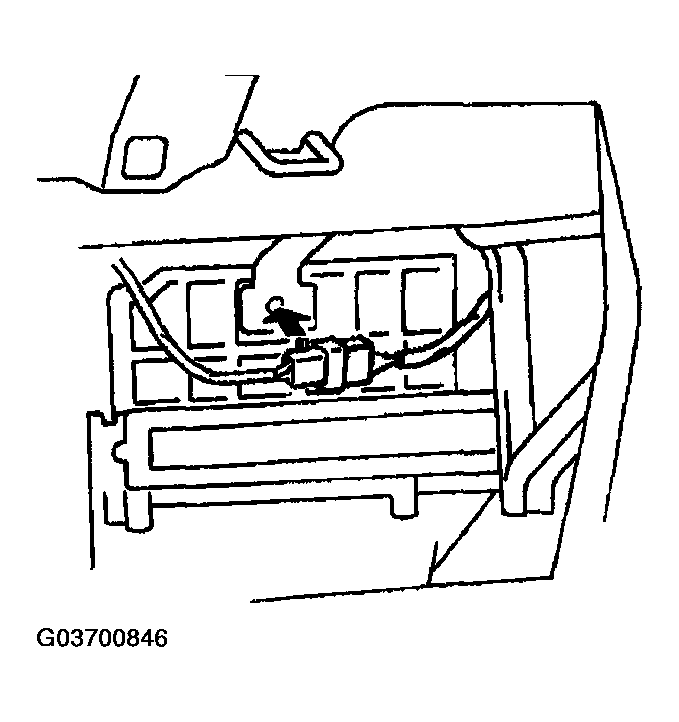

Fig 1: Connecting And Installing Passenger-Side Air Bag Module Connector
Courtesy of MAZDA MOTORS CORP.
