Connector Removal Note

  1. Using a flathead screwdriver, pry out the connector stopper plate.

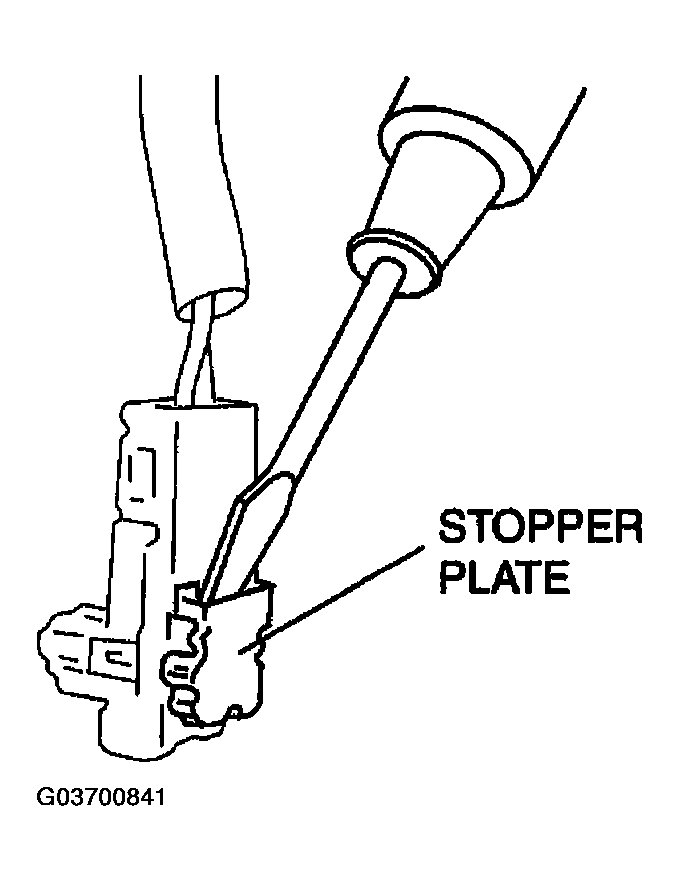

    Fig 1: Removing Connector Stopper Plate
    G03700841Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the connector.
