Driver-Side Air Bag Module Removal/Installation (Standard Deployment Control System): Notes

WARNING:

Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See SERVICE WARNINGS .) (See SERVICE CAUTIONS .)

Turn the ignition switch to LOCK position.
Disconnect the negative battery cable and wait for 1 min or more.
Remove in the order indicated in the table.

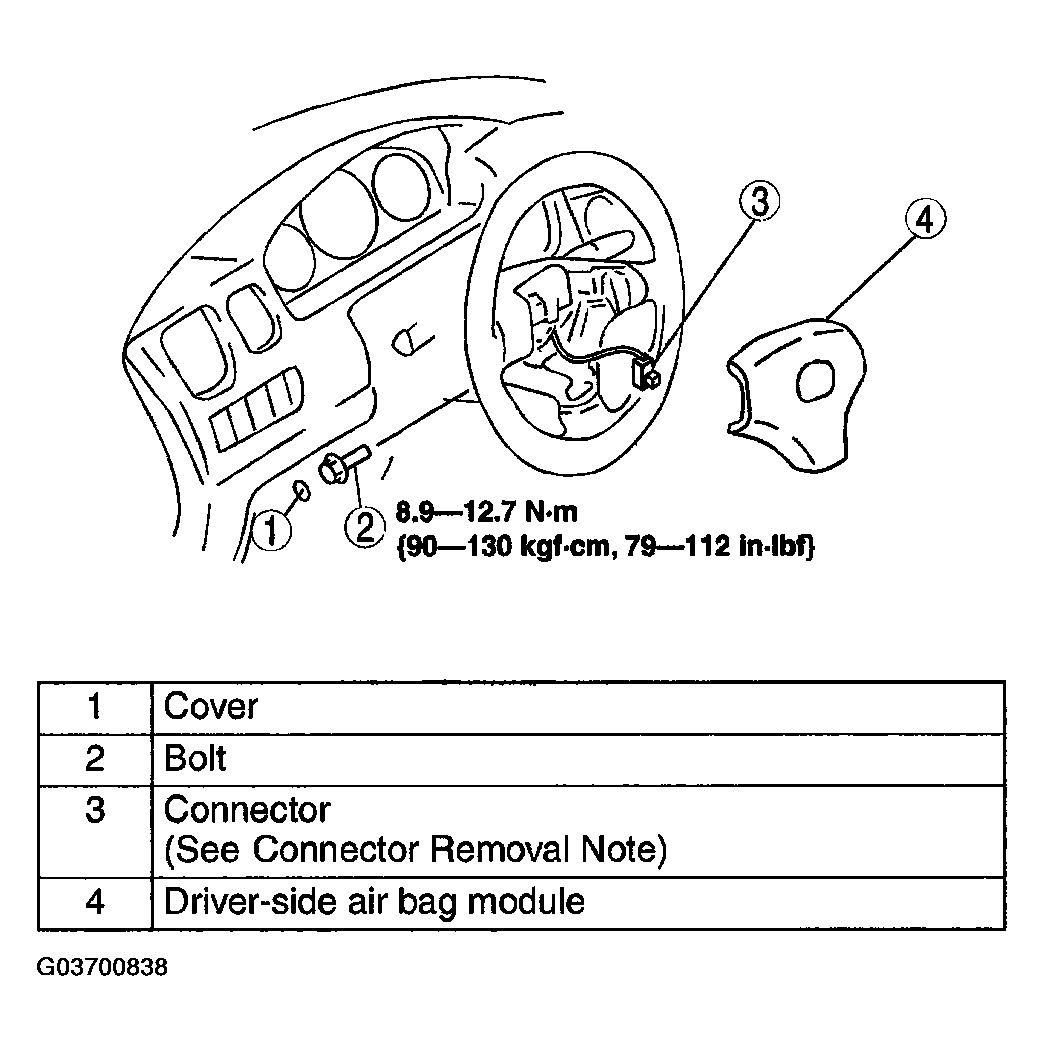

Fig 1: Removing Driver-Side Air Bag Module (Standard Deployment Control System) - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Turn the ignition switch to ON position.
Verify that the air bag system warning light illuminates for approx. 6 s and then goes off.
- If the air bag system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic.
