Front A/C Unit Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

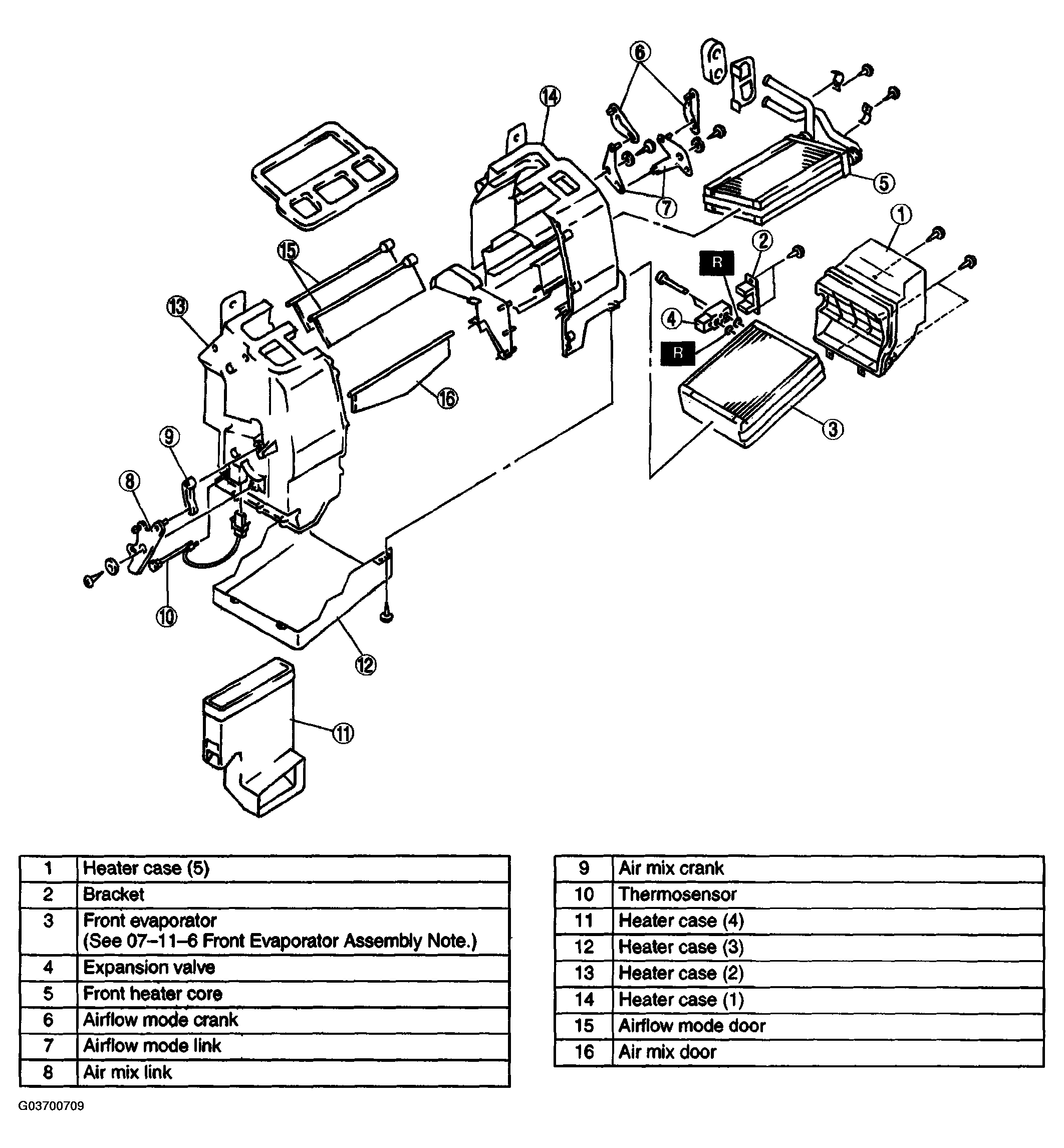

    Fig 1: Disassembling Front A/C Unit
    G03700709Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
