Clock Spring Connector End View (Two-Step Deployment Control System)

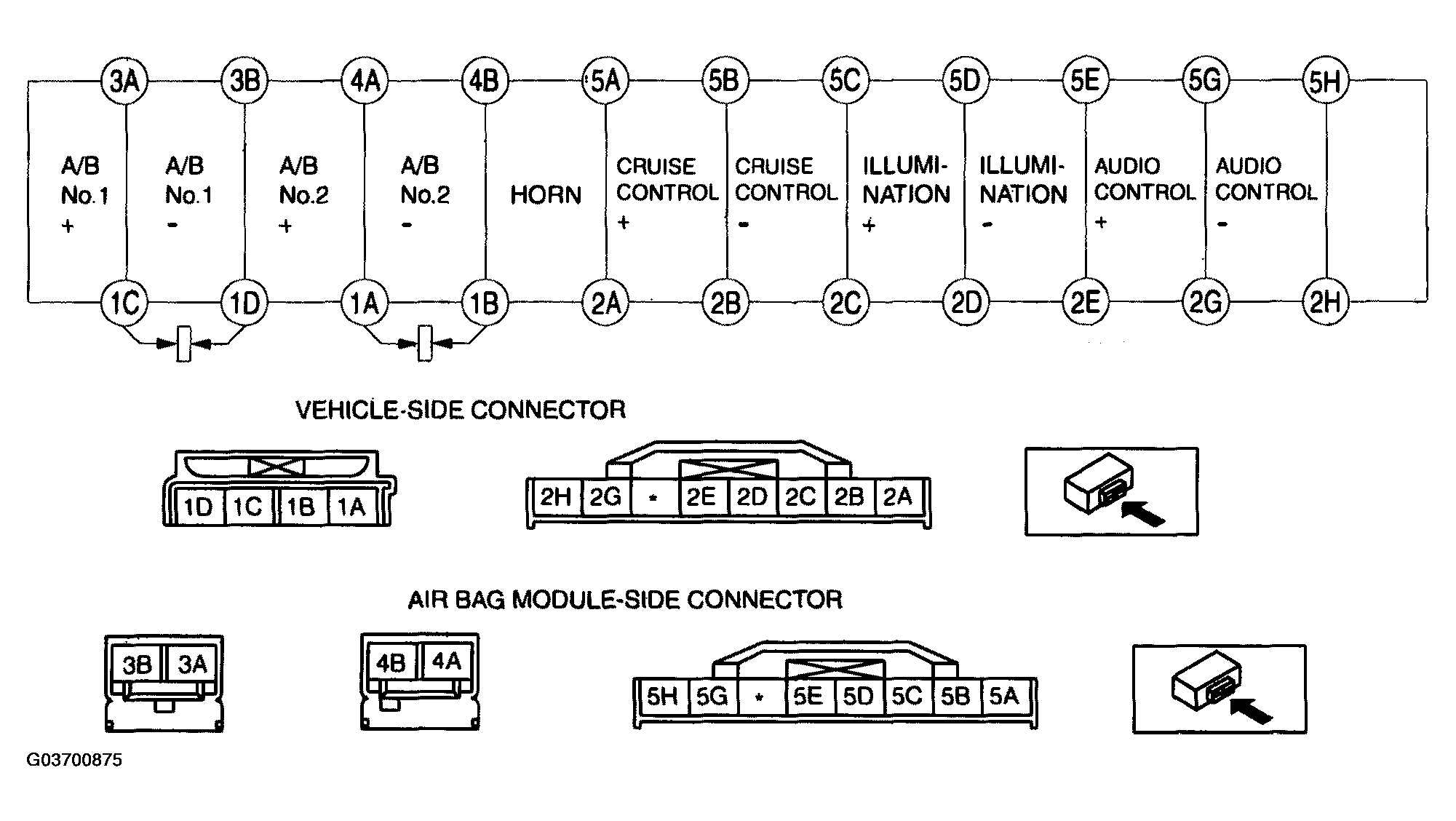

Fig 1: Clock Spring Connector End View (Two-Step Deployment Control System)

G03700875

Courtesy of MAZDA MOTORS CORP.
