Clockspring Connector End View (Standard Deployment Control System)
Clockspring Connector End View (Standard Deployment Control System)

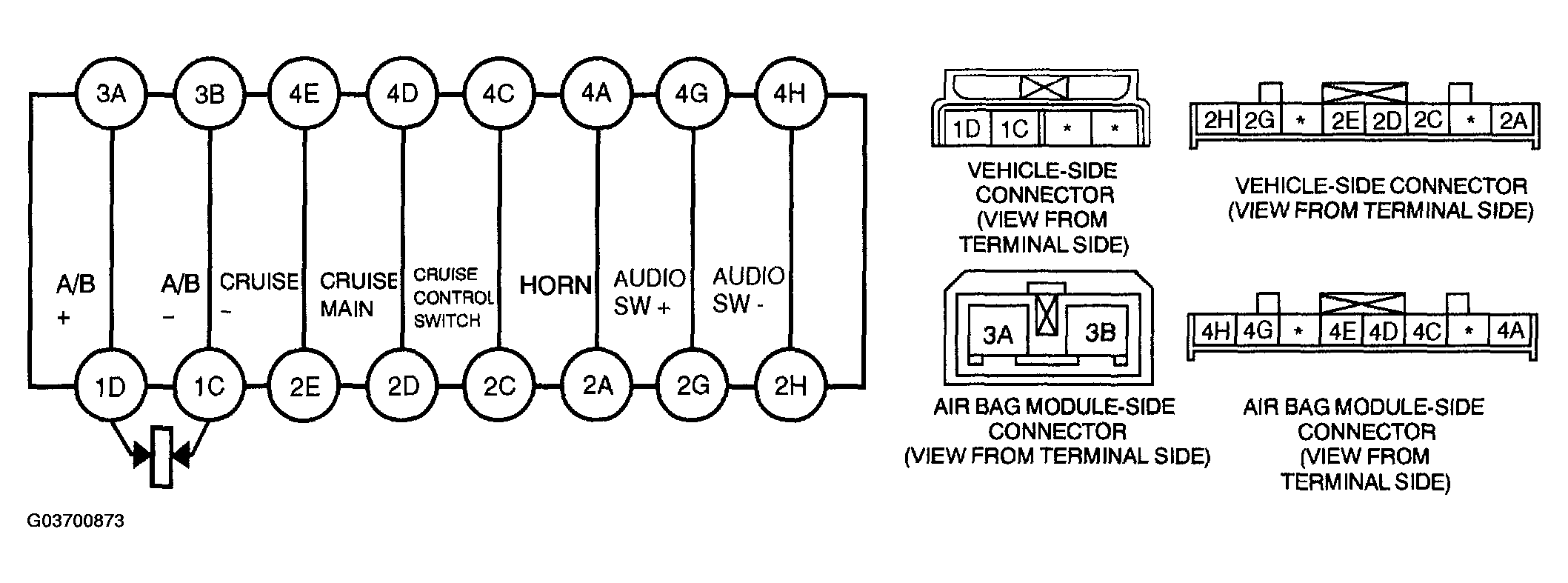

Fig 1: Clockspring Connector End View (Standard Deployment Control System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
