Seat Armrest Front - 60 Percent Bench Removal/Installation: Installation

Install the armrest and install the two armrest bracket bolts (one shown).

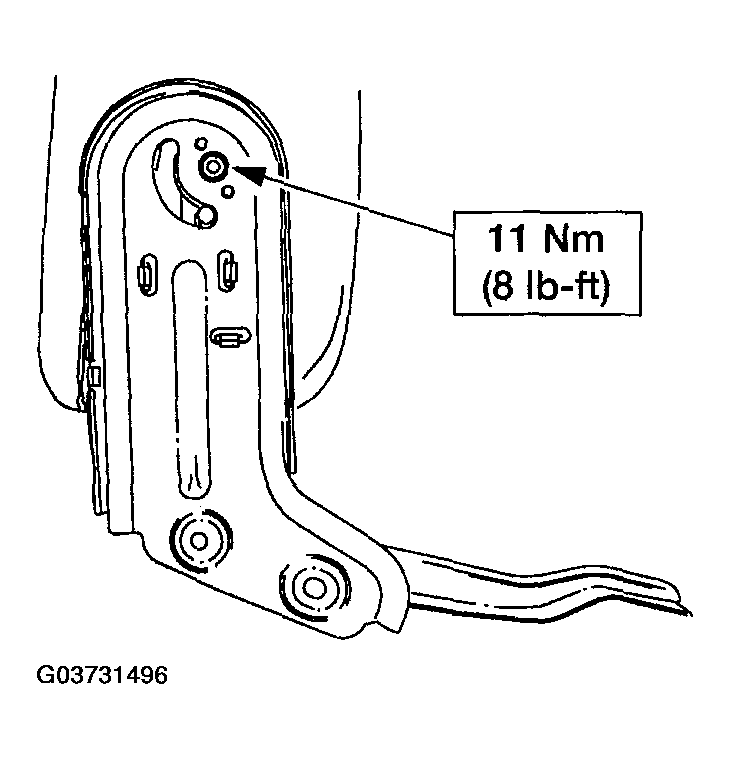

Fig 1: Identifying Tightening Torque Of Armrest Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Install the armrest bracket shrouds.

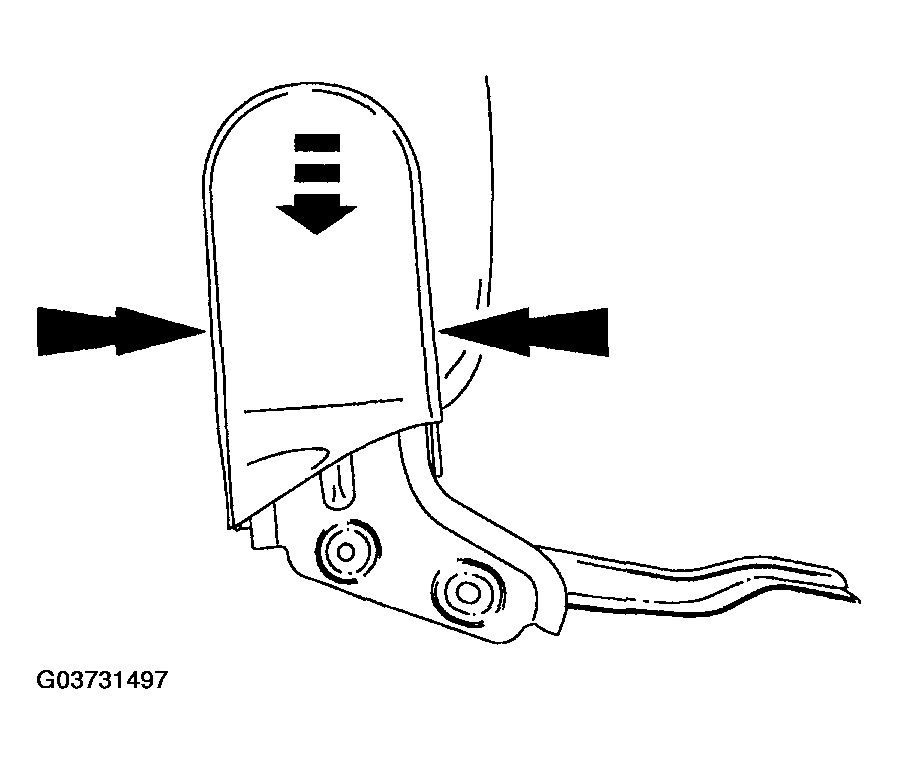

Fig 2: Installing Armrest Bracket Shrouds
Courtesy of MAZDA MOTORS CORP.
Position the front seat cushion trim cover. Secure the hook and loop fastener.
Install the center child safety seat tether anchor and the bolts.

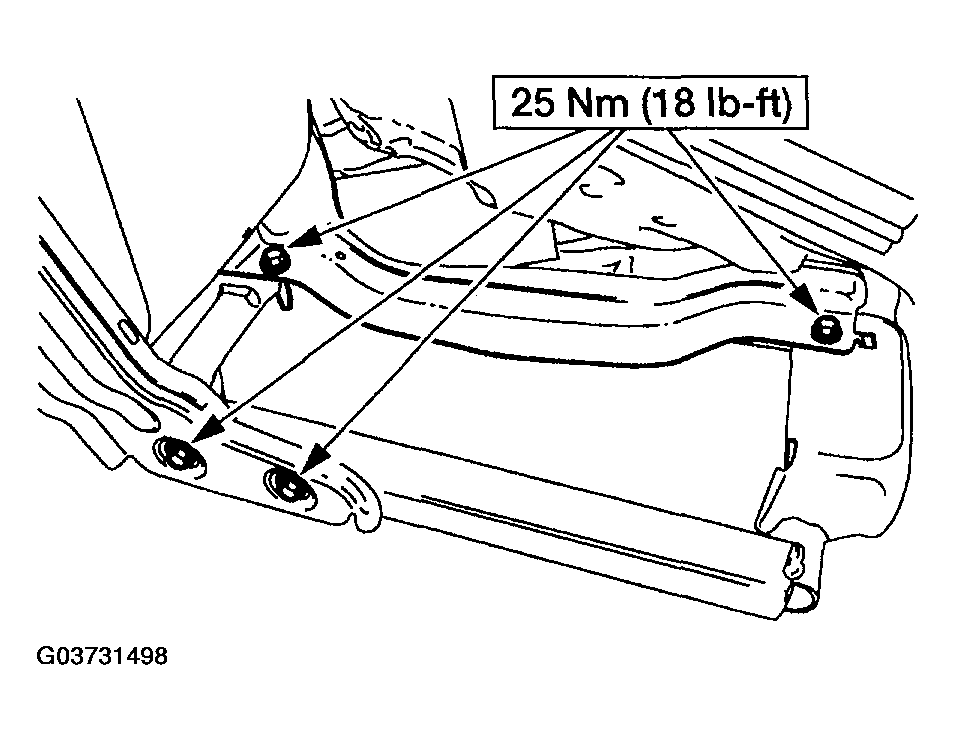

Fig 3: Installing Center Child Safety Seat Tether Anchor And Bolts
Courtesy of MAZDA MOTORS CORP.
Position the material around the tether anchor and attach the hook and loop strip and attach the rear armrest J-clip.

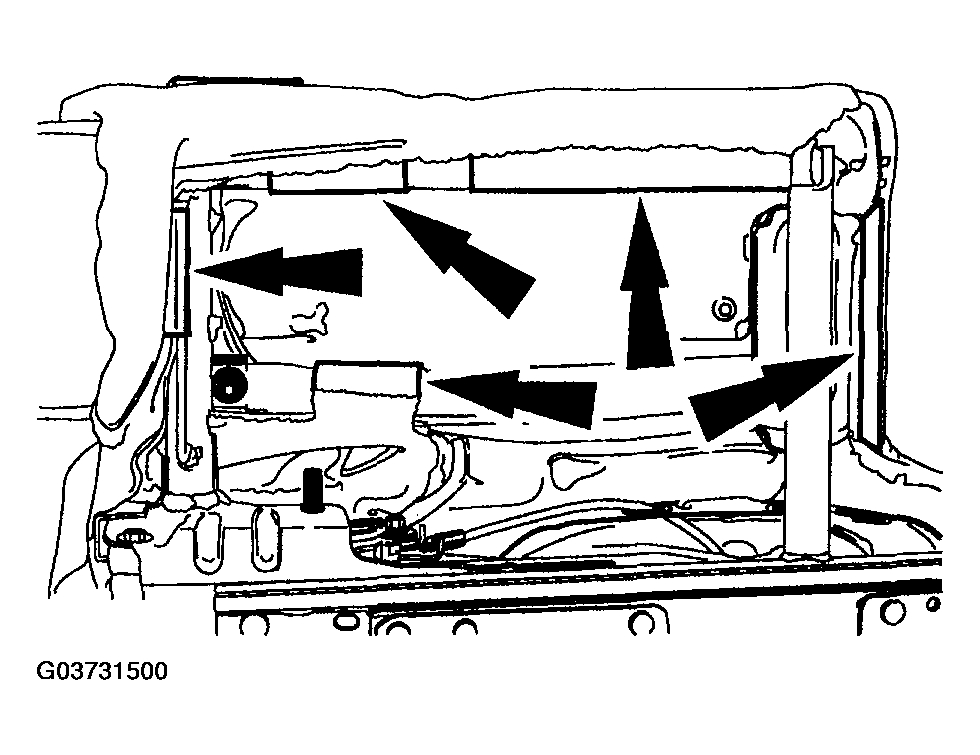

Fig 4: Attaching Hook, Loop Strip And Rear Armrest J-Clip
Courtesy of MAZDA MOTORS CORP.
Attach the J-clips

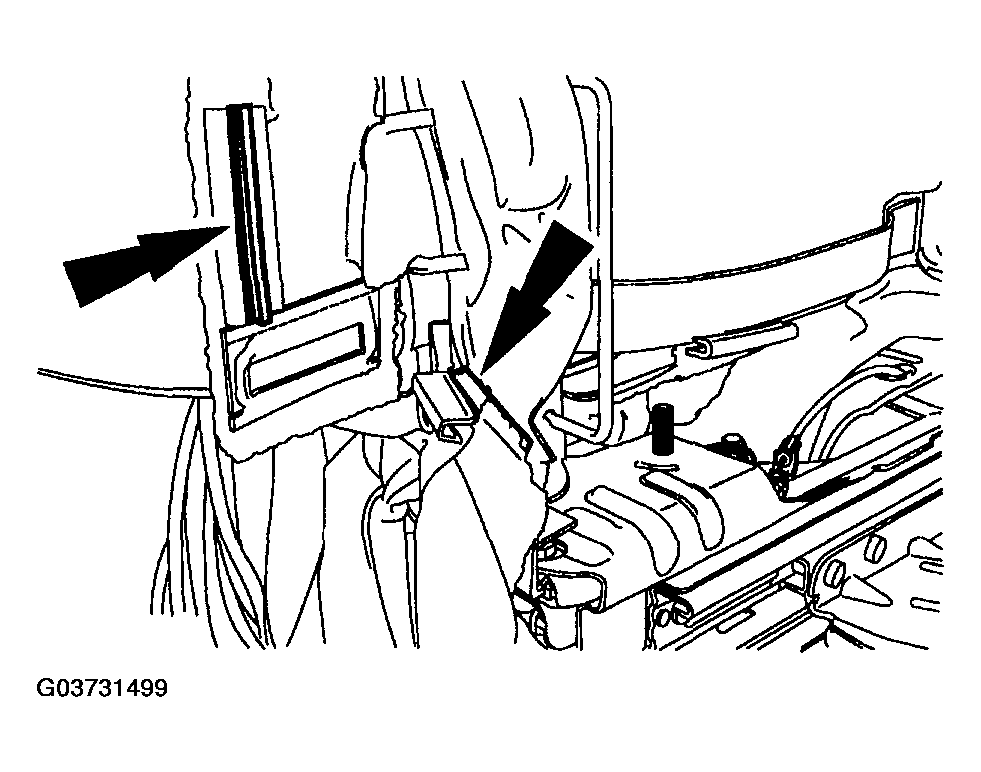

Fig 5: Attaching J-Clips
Courtesy of MAZDA MOTORS CORP.
Install the safety belt buckle pretensioner and install the nut.

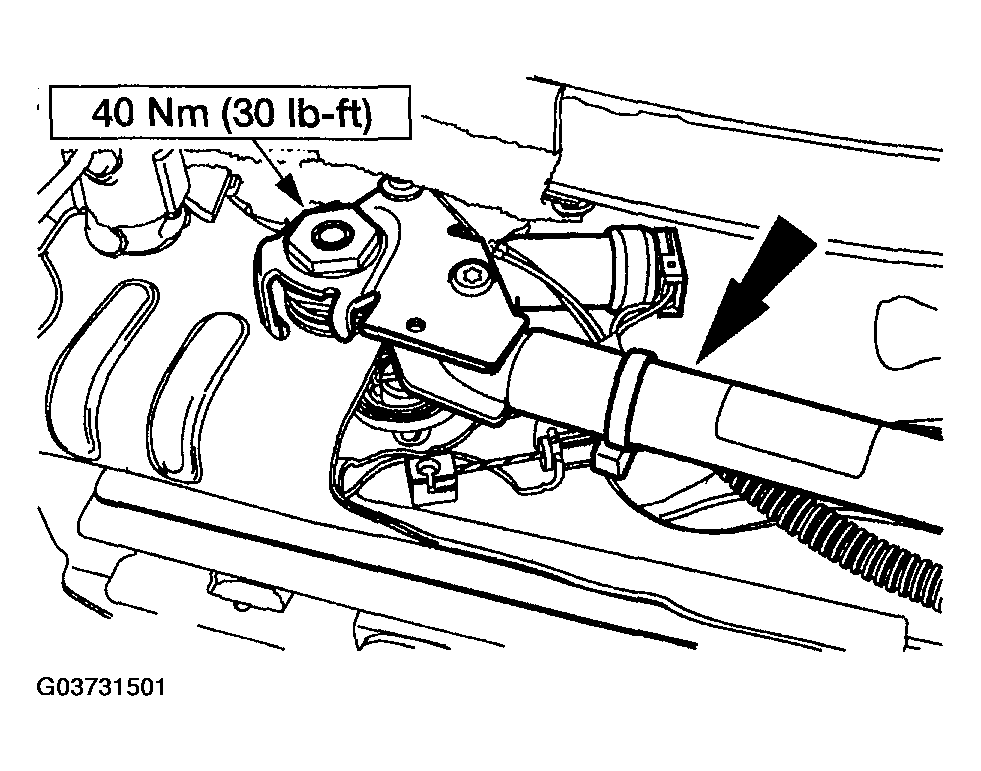

Fig 6: Identifying Tightening Torque Of Safety Belt Buckle Pretensioner Nut
Courtesy of MAZDA MOTORS CORP.
Install the safety belt buckle pretensioner cover and install the screw.

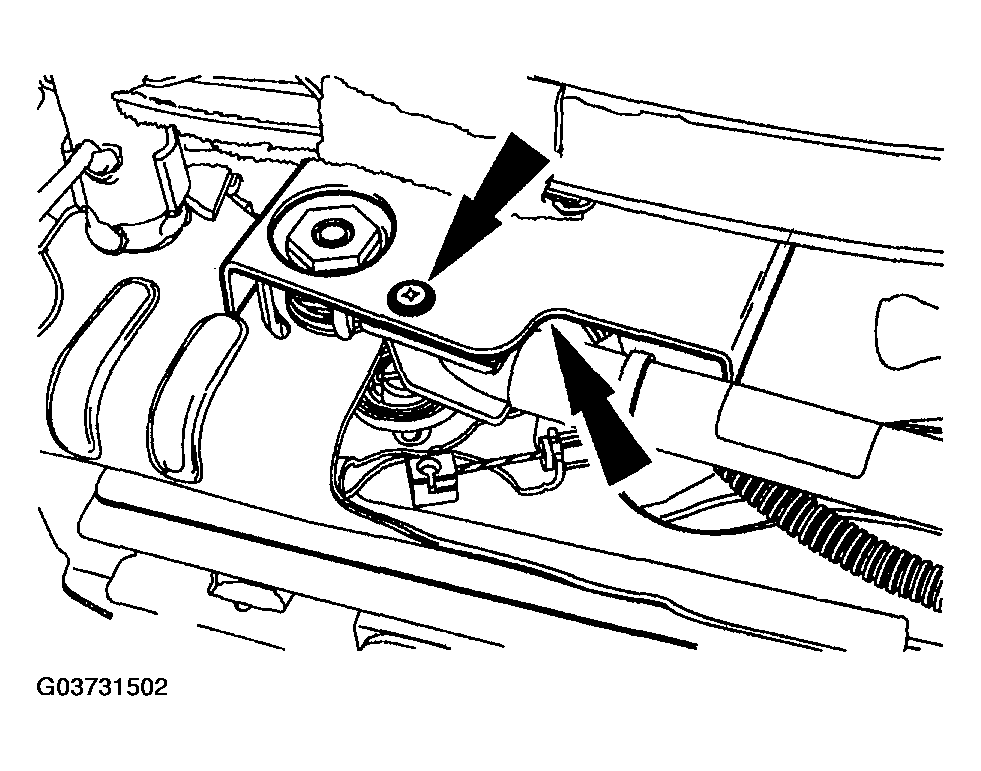

Fig 7: Identifying Tightening Torque Of Safety Belt Buckle Pretensioner Cover Screw
Courtesy of MAZDA MOTORS CORP.
Route the safety belt buckle pretensioner wire harness through the seat and attach the harness clips and the electrical connector to the seat cushion pan.

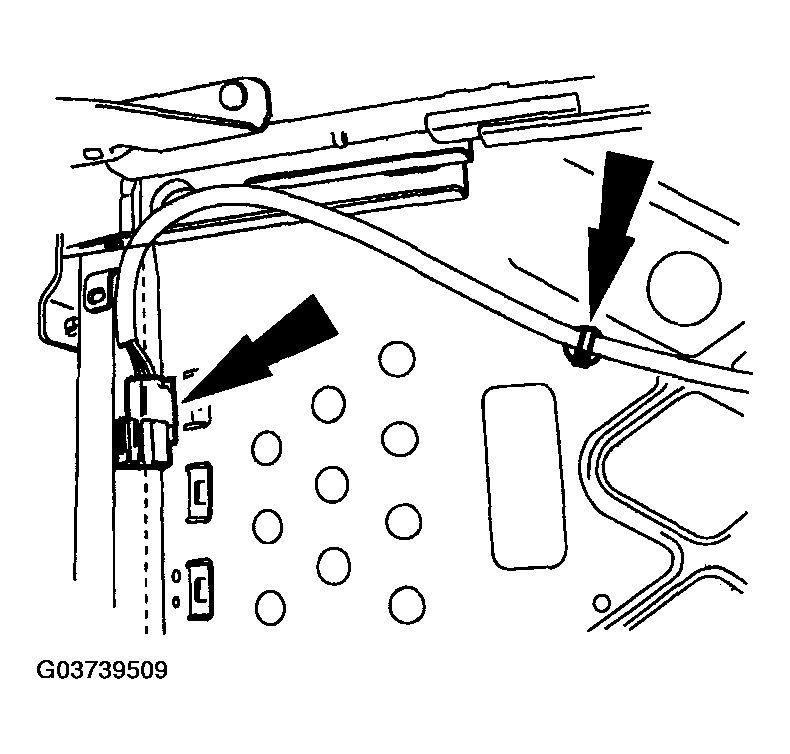

Fig 8: Attaching Harness Clips And Electrical Connector To Seat Cushion Pan
Courtesy of MAZDA MOTORS CORP.
Install the 60 percent bench seat. See SEAT BACKREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION .
Repower the SRS. See SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
