Interior Lamp Switch Removal/Installation

  1. Remove the front door trim panel. See DOOR TRIM PANEL FRONT REMOVAL/INSTALLATION .
  2. Remove in order shown in Fig 1.
    1. Electrical connector
    2. Interior lamp switch

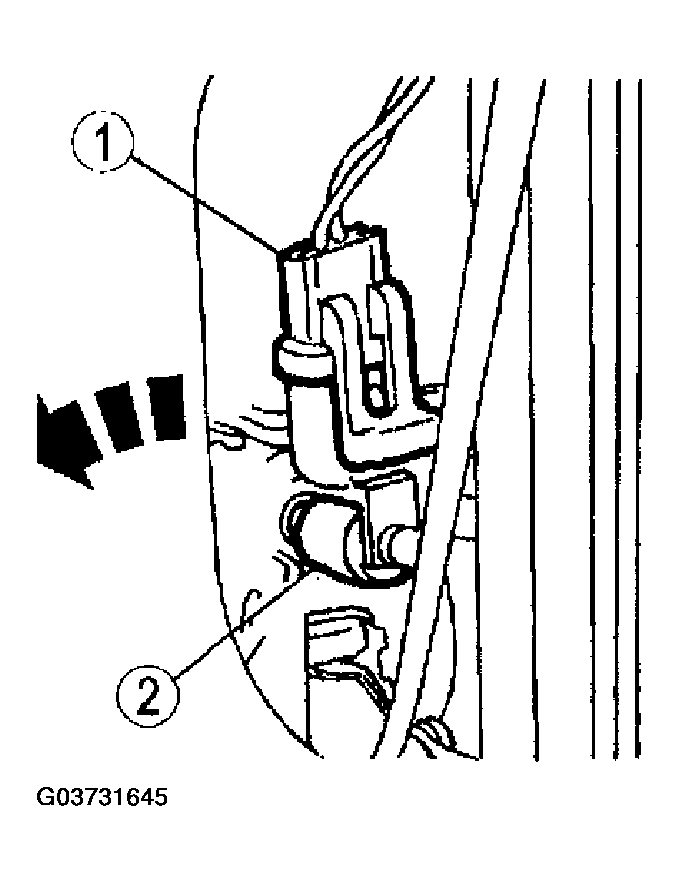

      Fig 1: Removing Interior Lamp Switch
      G03731645Courtesy of MAZDA MOTORS CORP.
      NOTE:
      • Push inward, rotate counterclockwise.
  3. Install in reverse order of removal.
