Headlamp Assembly Removal/Installation

NOTE:

Make sure that the headlamp switch and the ignition switch are in the OFF position.

Raise and support the hood.

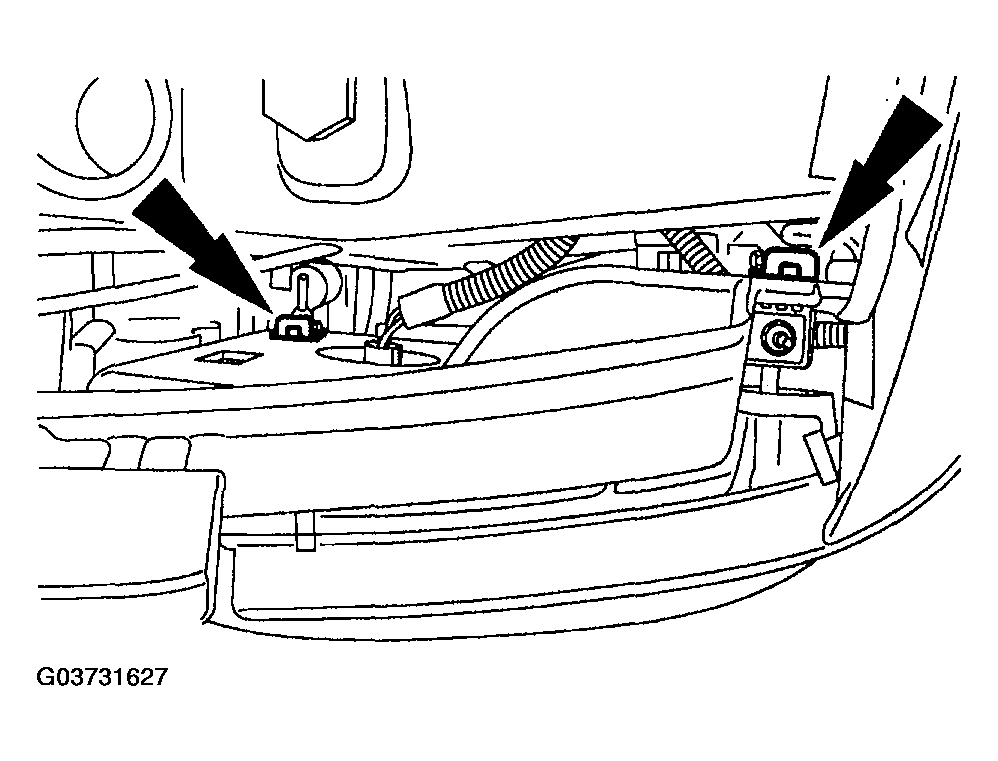

Pull up on the two retainer pins.

Fig 1: Pulling Up On Retainer Pins
Courtesy of MAZDA MOTORS CORP.

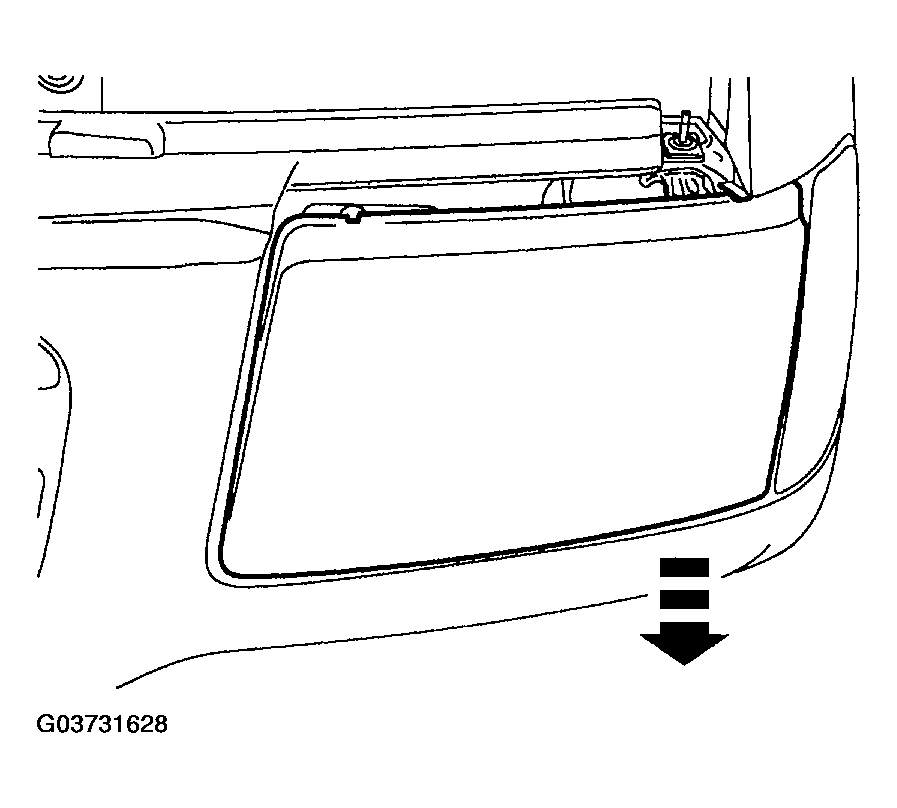

Pull the headlamp assembly forward.

Fig 2: Pulling Headlamp Assembly Forward
Courtesy of MAZDA MOTORS CORP.

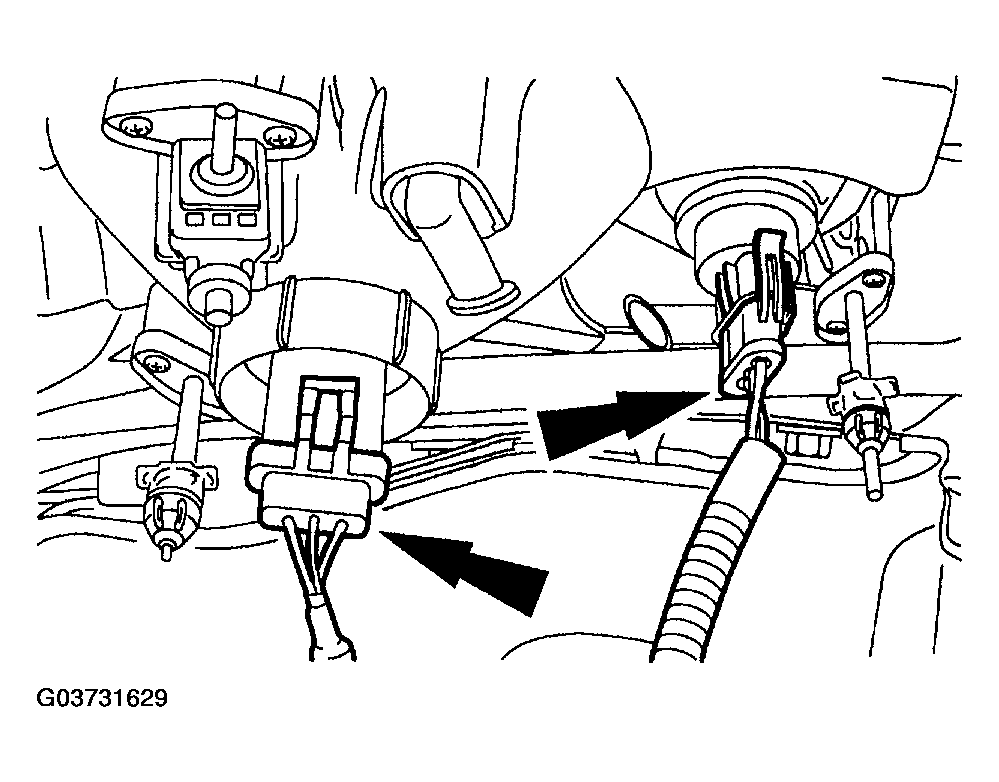

Disconnect the two electrical connectors.

Fig 3: Disconnecting Electrical Connectors
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
- If necessary, adjust the headlamps. See HEADLAMP ADJUSTMENT or HEADLAMP ADJUSTMENT - SCREEN METHOD .
