Fog Lamp Switch Removal/Installation

Pull out the center trim finish panel (1).
Disconnect the radio connectors (2) from the center trim finish panel (1).

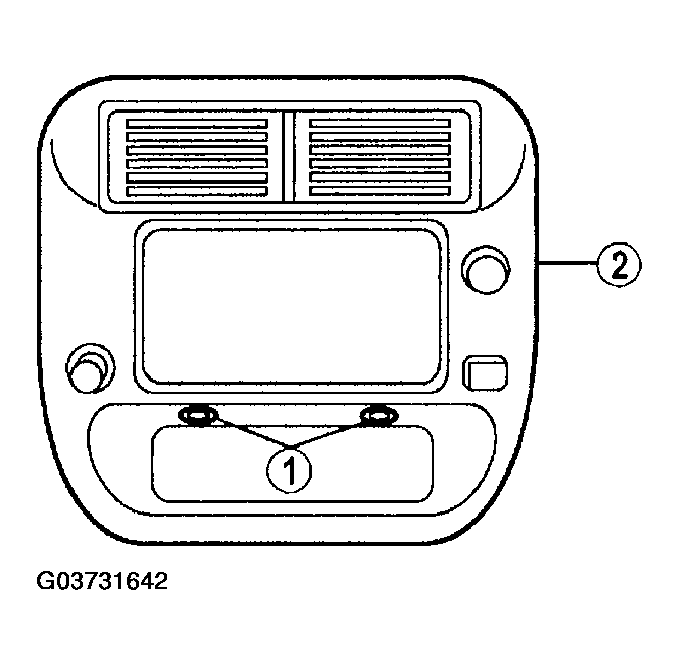

Fig 1: Disconnecting Radio Connectors From Center Trim Finish Panel
Courtesy of MAZDA MOTORS CORP.
Remove the screws (1).
Remove the switch bracket (2).
Remove the fog lamp switch (3).

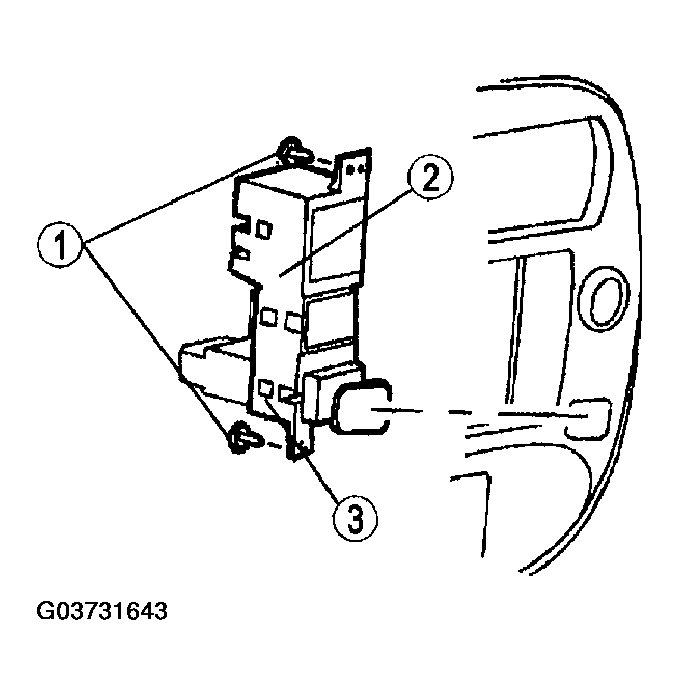

Fig 2: Removing Fog Lamp Switch
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
Tightening torque

2 - 3 N.m {20 - 31 kgf.cm, 18 - 27 in.lbf}
