Fog Lamp Assembly Removal/Installation

Remove the front bumper valance panel; see VALANCE PANEL REMOVAL/INSTALLATION .
Remove the fog lamp assembly.
1. Remove the bolts.
2. Remove the fog lamp assembly.

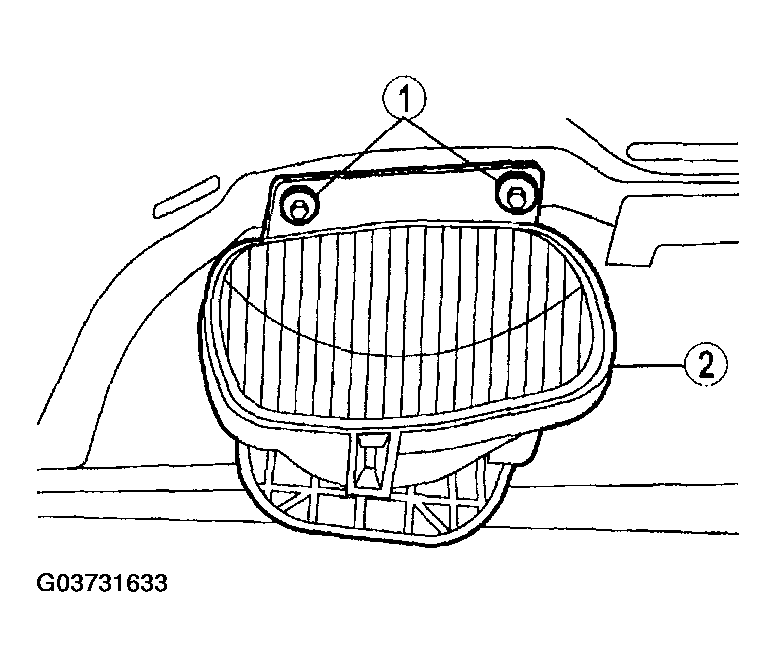

  Fig 1: Removing Fog Lamp Assembly
  Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
Tightening torque

4 - 6 N.m {41 - 61 kgf.cm, 36 - 53 in.lbf}
