Instrument Panel Register Center Removal/Installation

  1. Disconnect the negative battery cable.
  2. Using the special tool, remove the radio chassis.
  3. Disconnect the antenna lead and the wire harness connectors.
  4. Remove the center trim finish panel.
  5. Disconnect the wire harness connectors.
  6. Release the eight clips and remove the center instrument panel register from the center trim finish panel.

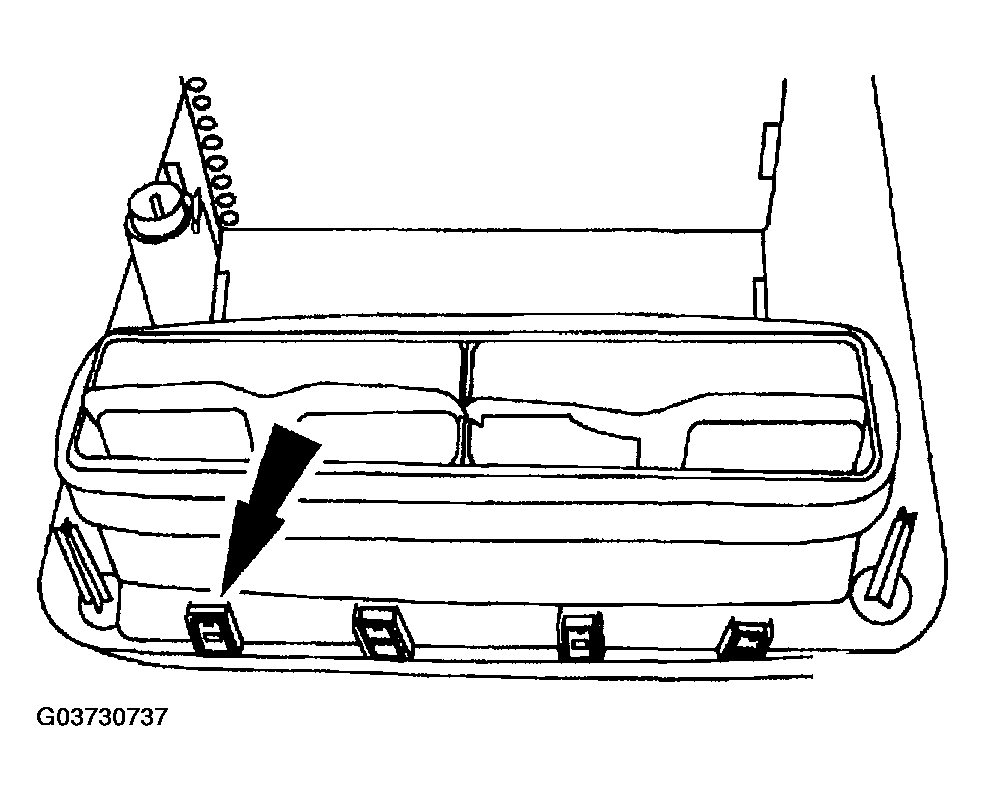

    Fig 1: Releasing Clips
    G03730737Courtesy of MAZDA MOTORS CORP.
  7. To install, reverse the removal procedure.

    Tightening torque

    2-3 N.m { 20-31 kgf.cm, 18-26 in.lbf }.
