A/C Compressor Bracket Removal/Installation - 4.0L

  1. Remove the A/C compressor; See A/C COMPRESSOR REMOVAL/INSTALLATION - 4.0L .
  2. Remove the power steering pump from the A/C compressor bracket; see POWER STEERING PUMP REMOVAL/INSTALLATION .
  3. Remove the A/C compressor bracket.
    1. Loosen the nuts.
    2. Remove the bolts and remove the bracket.

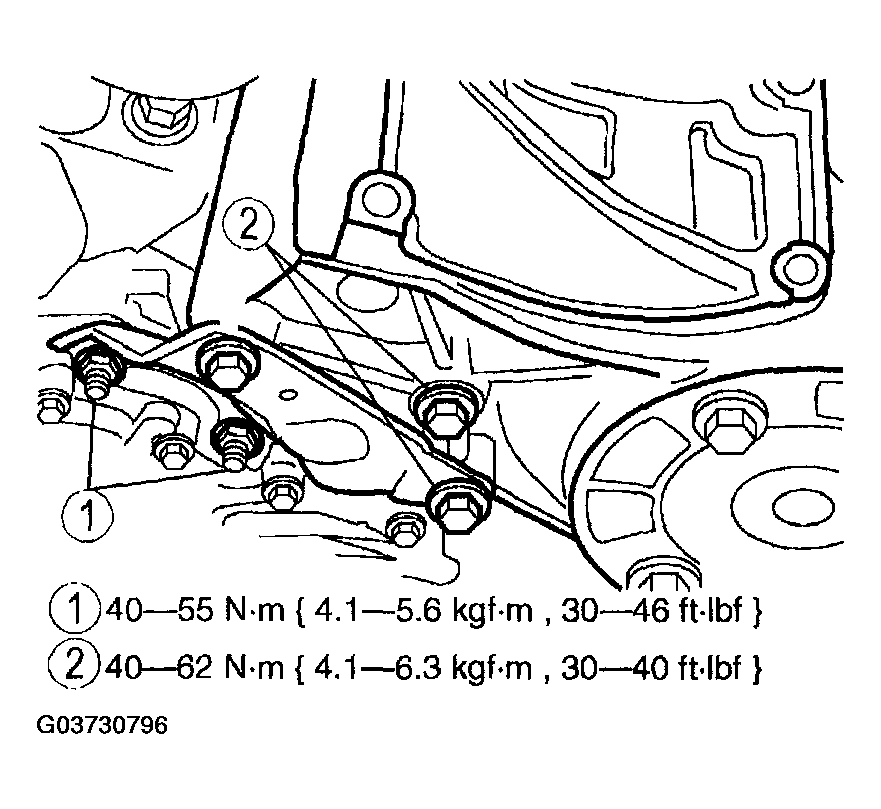

      Fig 1: Removing A/C Compressor Bracket - With Torque Specification
      G03730796Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
